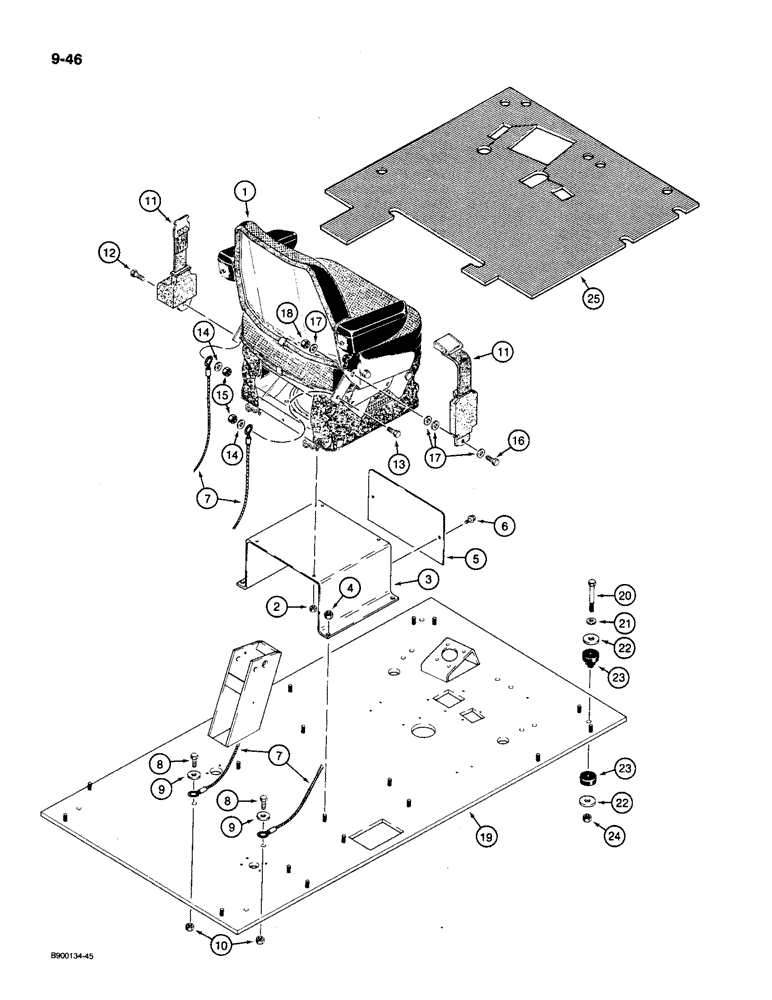

Запчасти Case 1085C (9-046) - SEAT, SEAT MOUNTING AND FLOOR PLATE (09) - CHASSIS/ATTACHMENTS

1

S517337

SEAT ASSY.

SEAT ASSEMBLY - operator, parts list Figures: 9-048 through 9-052

1шт.

2

131-205

LOCK NUT,5/16"-18

NUT - hex, self-locking, 5/16 inch NC

4шт.

3

S517822

SUPPORT

- seat mounting

1шт.

4

131-208

SPECIAL NUT,1/2"-13

NUT - hex, self-locking, 1/2 inch NC

4шт.

5

S243740

PANEL

COVER - front, seat support

1шт.

6

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

2шт.

7

S243576

CABLE

- seat to floor plate

2шт.

8

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

9

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened

2шт.

10

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

11

S517711

SAFETY BELT

SAFETY BELT, Operator, Automatic locking type

1шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

14

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

15

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

16

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- hex, 7/16 NC x 1-1/2 inch

1шт.

17

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 3/32 inch

4шт.

18

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

19

S619237

PLATE

- floor and cab mounting

1шт.

20

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

21

S95569

WASHER

- flat, special

4шт.

22

95-81162

WASHER,0.56" ID x 1.88" OD x 0.13" Thk

- flat, 9/16 x 1-7/8 x 5/32 inch

8шт.

23

S243400

MOUNTING PARTS

INSULATOR - floor plate mounting, two-piece type

4шт.

24

131-208

SPECIAL NUT,1/2"-13

NUT - hex, self-locking, 1/2 inch NC

4шт.

25

S619508

FLOOR MAT

FLOORMAT - operator compartment

1шт.
