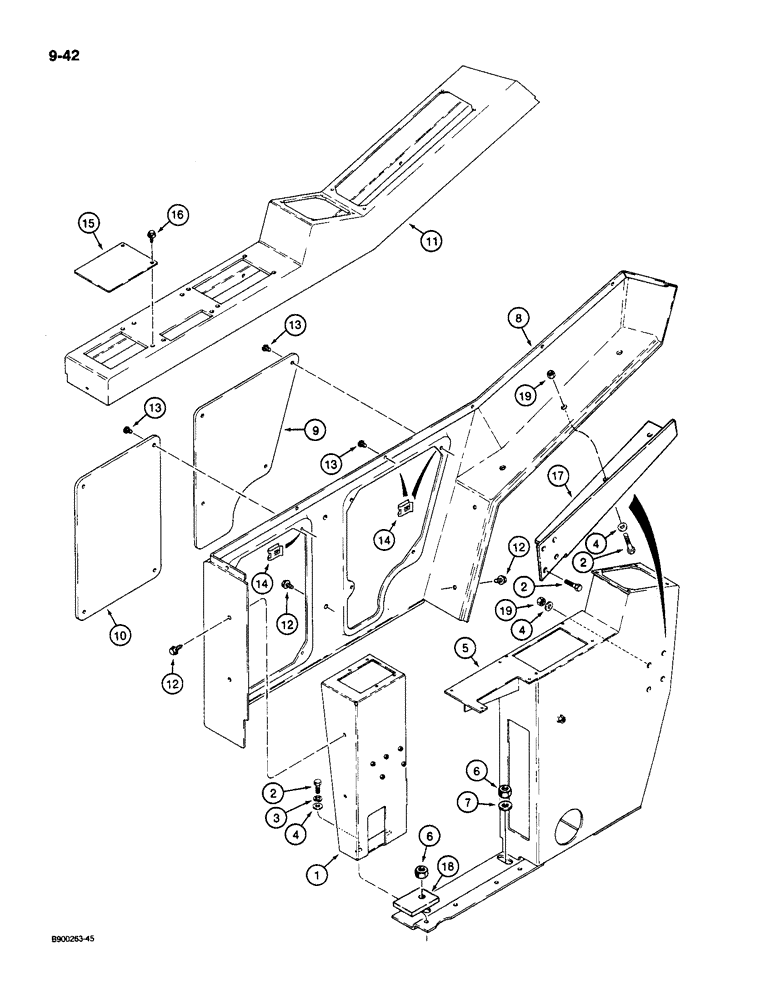

Запчасти Case 1085C (9-042) - RIGHT-HAND CONSOLE AND COVERS (09) - CHASSIS/ATTACHMENTS

1

S619448

BRACKET

- mounting, fuse block

1шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

9шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

9шт.

5

S957073

SUPPORT

BRACKET - mounting, console covers

1шт.

6

131-208

SPECIAL NUT,1/2"-13

NUT - hex, self-locking, 1/2 inch NC

3шт.

7

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

1шт.

8

S957069

CONSOLE

COVER - console side

1шт.

9

S517560

COVER

- console, access, front

1шт.

10

S517559

COVER

- console, access, rear

1шт.

11

S957062

CONSOLE

- top, control and switches

1шт.

12

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

6шт.

13

175-474

SCREW - machine, truss head slotted, No. 10 NC x 1/2 inch

15шт.

14

S117167

CLIP

NUT - U-type, No. 10 NC

15шт.

15

S517703

COVER

- access, fuse block

1шт.

16

163-39

SCREW,Hex Wshr Hd, #10 - 24 x 3/4", Gr 5

- machine, hex washer head, No. 10 NC x 3/4 inch

2шт.

17

S517969

BRACKET

- mounting, console cover bracket

1шт.

18

S121105

BAR

- spacer

2шт.

19

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

7шт.
