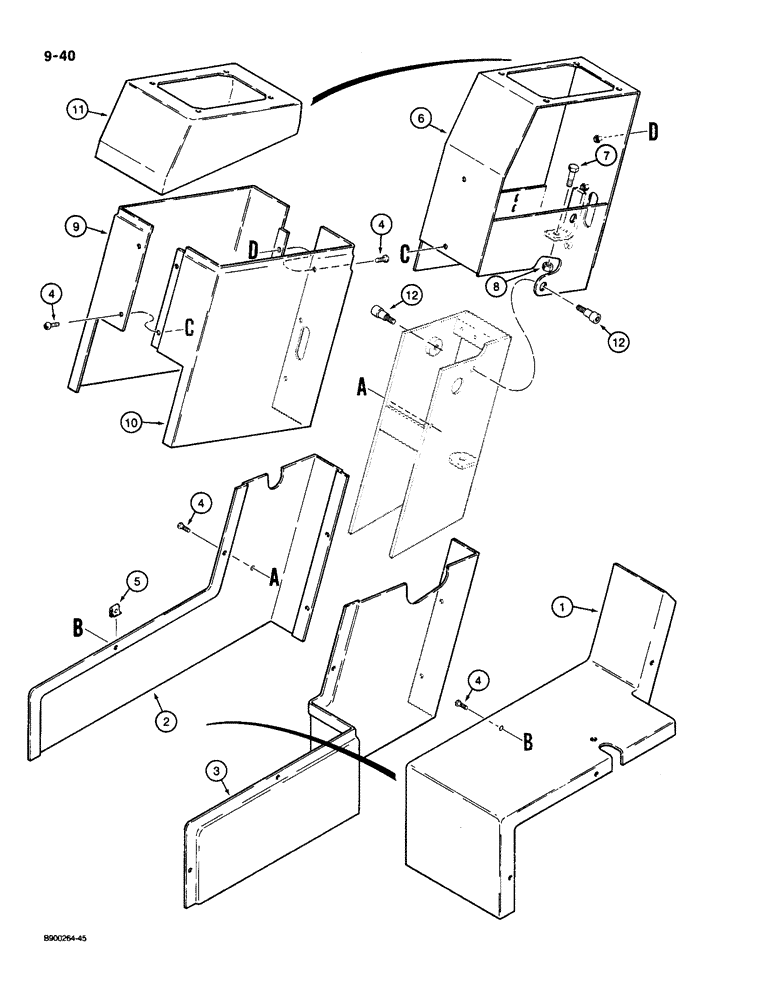

Запчасти Case 1085C (9-040) - LEFT-HAND TILT CONSOLE (09) - CHASSIS/ATTACHMENTS

1

S619426

COVER

- console, center

1шт.

2

S619532

CONSOLE

COVER - console, outer

1шт.

3

S619533

CONSOLE

COVER - console, inner

1шт.

4

175-474

SCREW - machine, truss head slotted, No. 10 NC x 1/2 inch

13шт.

5

S117167

CLIP

NUT - U-type, No. 10 NC

7шт.

6

S517760

SHELL

CONSOLE - tilt

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

8

425-106

NUT,3/8"-16, Cl 5

1шт.

9

S619535

CONSOLE

COVER - tilt console, outer

1шт.

10

S619534

CONSOLE

COVER - tilt console, inner

1шт.

11

S619536

CONSOLE

COVER - tilt console, top

1шт.

12

121-227

STEP BOLT,Hex Skt, 3/8" - 16 - 1/2" x 1/2"

SCREW, Hex Soc Hd, Shdr, 3/8"-16 x 1/2"

2шт.
