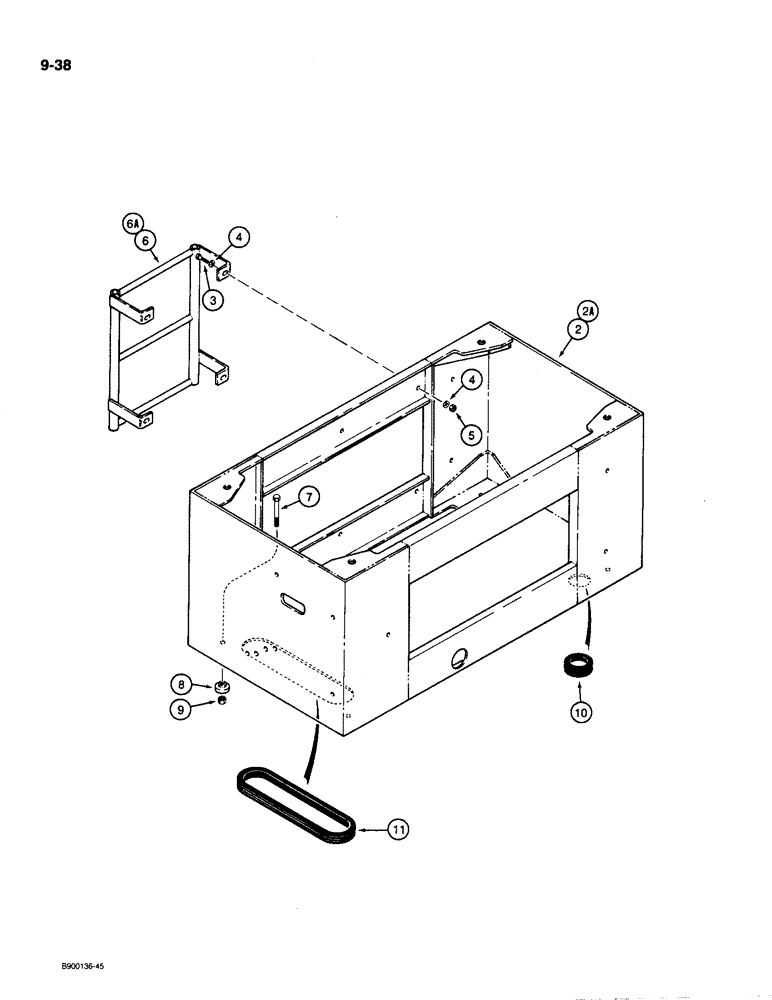

Запчасти Case 1085C (9-038) - CAB RISER (09) - CHASSIS/ATTACHMENTS

2

S957111

RISER

- cab, 30 inch, if used

1шт.

2a

S957110

RISER

- cab, 60 inch, if used

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

5

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

6

S506285

ASSEMBLY

LADDER - used with 30 inch riser

1шт.

6a

S506385

ASSEMBLY

LADDER - used with 60 inch riser

1шт.

7

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

4шт.

8

S243713

SPACER

- riser mounting

4шт.

9

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

4шт.

10

REF

INSTRUCTION

GUARD - edge protector, 10 inch (254 mm) long, cut from S118484, see below

1шт.

11

REF

INSTRUCTION

GUARD - edge protector, 60 inch (1524 mm) long, cut from S118481, see below

1шт.

S118481

PACKAGE

GUARD - edge, bulk roll, 1 inch (25 mm) ID x 60 inch (1524 mm) long

1шт.
