(9-036) - TURNTABLE SECURITY COVERS

Запчасти Case 1085C (9-036) - TURNTABLE SECURITY COVERS (09) - CHASSIS/ATTACHMENTS

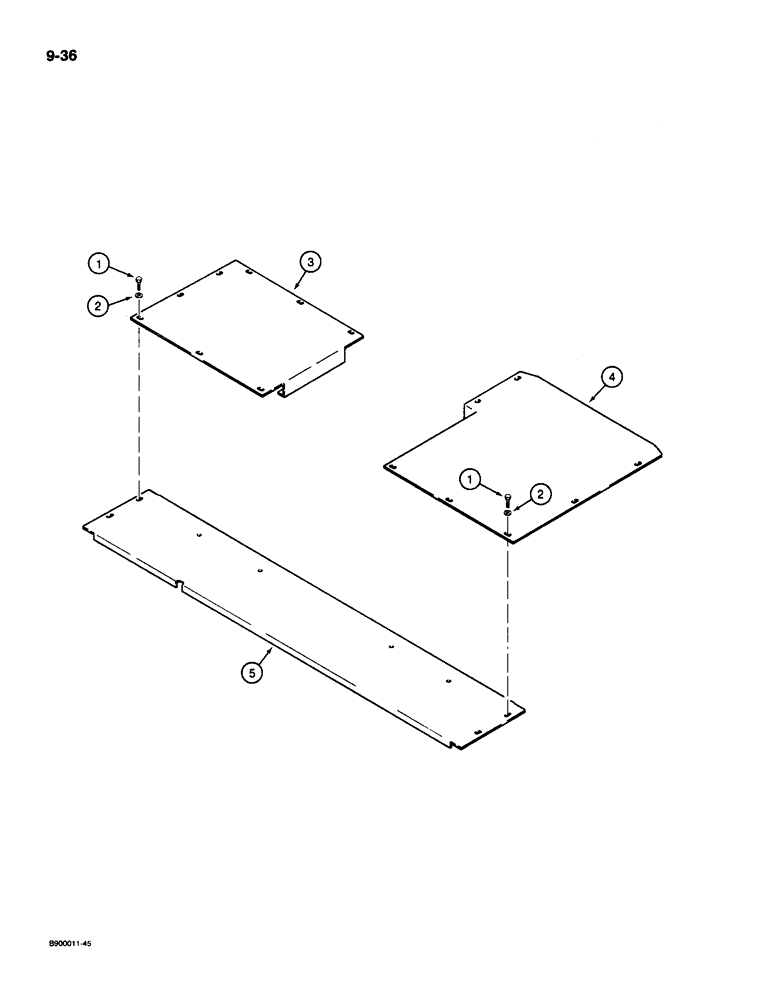

Схема запчастей Case 1085C - (9-036) - TURNTABLE SECURITY COVERS (09) - CHASSIS/ATTACHMENTS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

17шт.

2

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened

17шт.

3

S619565

GUARD

COVER - left front

1шт.

4

S619564

GUARD

COVER - right front

1шт.

5

S619559

GUARD

SUPPORT - front covers

1шт.
