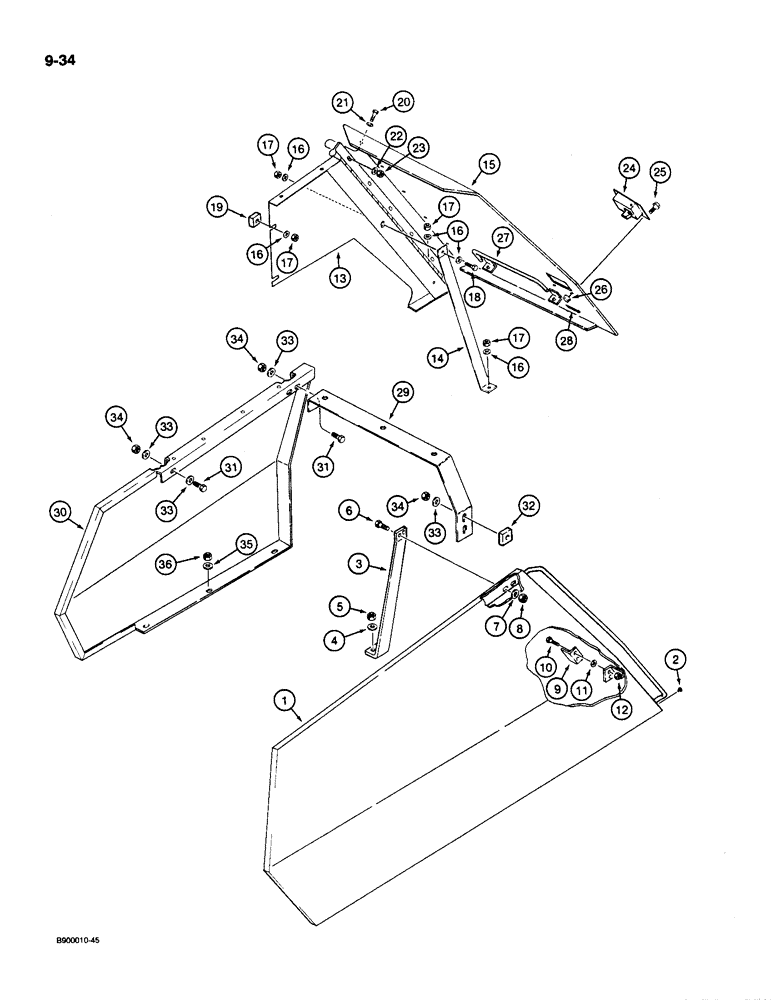

Запчасти Case 1085C (9-034) - TURNTABLE SIDE AND FRONT COVERS (09) - CHASSIS/ATTACHMENTS

1

S619525

SHROUD

COVER - turntable, right-hand side

1шт.

2

L126956

BUMPER - rubber, side cover

4шт.

3

S619548

BRACE

- right-hand cover

1шт.

4

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened

2шт.

5

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

6

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

7

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened

2шт.

8

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

9

S243582

BRACKET

- right-hand side cover

1шт.

10

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

11

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch

2шт.

12

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

2шт.

13

S619521

SHROUD

SUPPORT - front access door

1шт.

14

S517736

BRACKET

BRACE - support

1шт.

15

S619520

DOOR

- turntable, front access

1шт.

16

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened

7шт.

17

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

6шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

19

195-904

BELLEVILLE WASHER

SPACER - square, 3/4 inch bolt size

2шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

5шт.

21

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch

5шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

5шт.

23

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

5шт.

24

R56221

LATCH

HANDLE - door latching

1шт.

25

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

4шт.

26

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

4шт.

27

S243499

ROD

- support, door open

1шт.

28

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

29

S619567

BRACE

- left-hand turntable cover

1шт.

30

S619556

SHROUD

COVER - turntable, left-hand side, used with excavator cab models

1шт.

30a

S619579

SHROUD

COVER - turntable, left-hand side, used with material handling cab models, not shown

1шт.

31

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

3шт.

32

195-904

BELLEVILLE WASHER

SPACER - square, 3/4 inch bolt size

2шт.

33

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened

6шт.

34

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

5шт.

35

S95569

WASHER

- hardened, special

7шт.

36

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

7шт.
