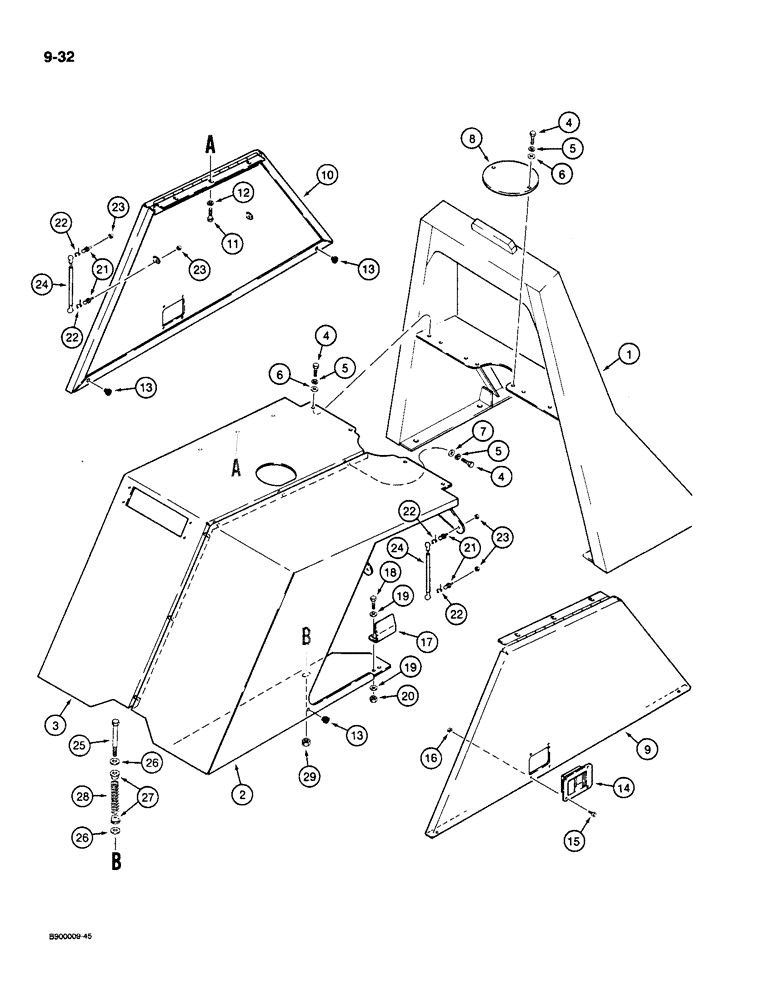

Запчасти Case 1085C (9-032) - ENGINE COVERS (09) - CHASSIS/ATTACHMENTS

1

S957075

RESTRICTOR

SUPPORT - boom rest, see Figure: 9-030 for radiator grille and mounting hardware

1шт.

2

S619474

GUARD

HOOD - engine, right-hand

1шт.

3

S619468

GUARD

HOOD - engine, left-hand

1шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

12шт.

5

492-11038

LOCK WASHER,3/8"

12шт.

6

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

8

S241674

COVER

- boom rest support, radiator access

1шт.

9

S619466

DOOR

PANEL - side, engine, right-hand

1шт.

10

S619467

DOOR

PANEL - side, engine, left-hand

1шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

12

492-11038

LOCK WASHER,3/8"

6шт.

13

L126856

RIVET

BUMPER - panel, rubber

6шт.

14

R56221

LATCH

HANDLE - panel, latching

2шт.

15

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

8шт.

16

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

8шт.

17

S243632

LATCH

- door handle

2шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

19

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch

4шт.

20

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

4шт.

21

F44882

BALL

STUD - ball type

8шт.

22

F44883

CLIP,DIN 71805 - S10

RETAINER - ball stud

8шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

24

S243453

CYLINDER, GAS

SPRING - gas, door closure

4шт.

25

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

2шт.

26

A15036

WASHER

- special

4шт.

27

S13668

CROSS PIN

SEAT - spring

4шт.

28

S46422

SPRING

- tension

2шт.

29

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.
