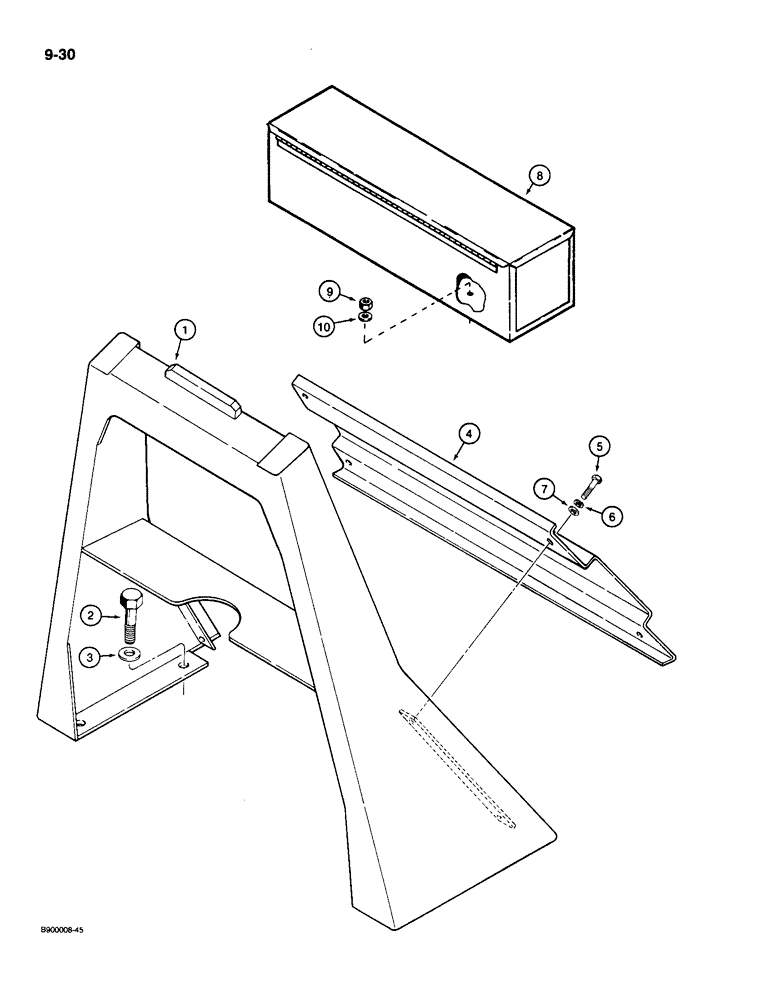

Запчасти Case 1085C (9-030) - BOOM SUPPORT AND TOOL BOX (09) - CHASSIS/ATTACHMENTS

1

S957075

RESTRICTOR

SUPPORT - boom rest

1шт.

2

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

3

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, special

4шт.

4

S619442

GRILLE

- radiator, at support

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

8

S219842

BOX, TOOL

BOX - tool, operator's

1шт.

9

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

4шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.
