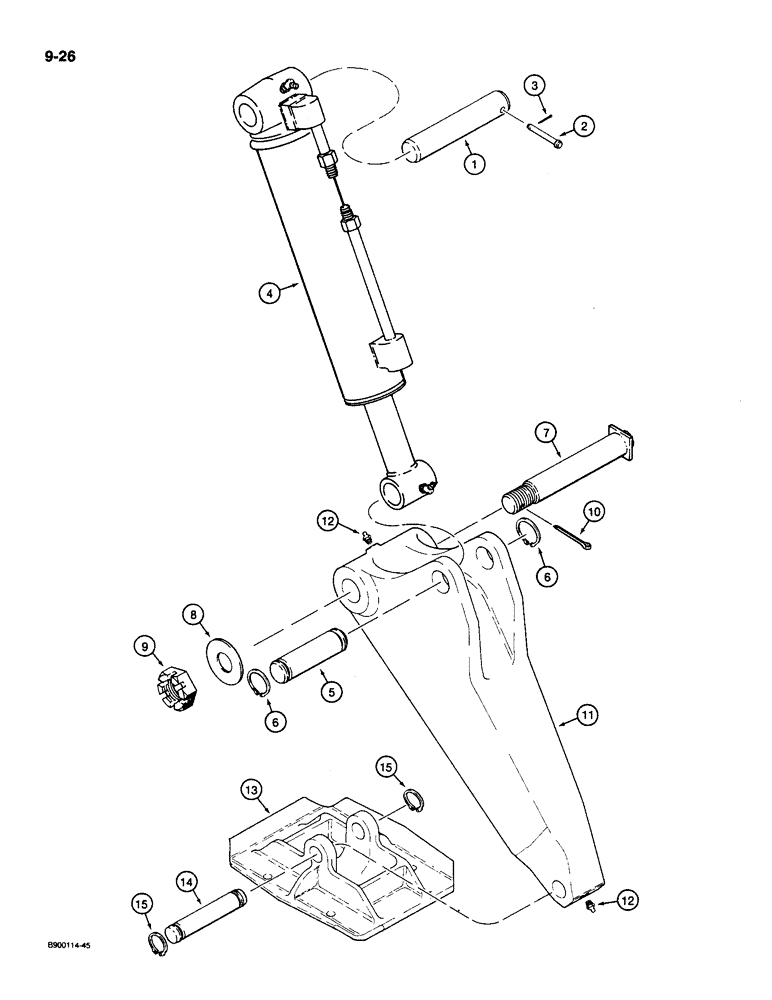

Запчасти Case 1085C (9-026) - OUTRIGGER ARMS AND PLATES, UNITS WITH EXCAVATOR BOOM (09) - CHASSIS/ATTACHMENTS

1

S243083

PIN

- closed end of cylinder to main frame weldment

2-4шт.

2

S61972

PIN

- clevis, special, closed end cylinder mounting pin

2-4шт.

3

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2-4шт.

4

G105017

CYLINDER

ASSEMBLY - outrigger, parts list Figure: 8-096

2-4шт.

5

S243556

PIN

- rod end of cylinder to outrigger arm

2-4шт.

6

D26919

SNAP RING,#200, Ext

Ring, Snap, , cylinder pin #200, Ext

4-8шт.

7

S243080

PIN ASSY.

PIN - outrigger arm to main frame weldment

2-4шт.

8

95-81198

WASHER,1.88" ID x 4" OD x 0.18" Thk

- flat, 1-7/8 x 4 x 3/16 inch

2-4шт.

9

25-1228

NUT

- hex, slotted, 1-3/4 inch NC

2-4шт.

10

432-2452

COTTER PIN,3/8" x 3 1/4"

Pin, Split (Cotter), 3/8" x 3 1/4"

2-4шт.

11

S619238

ARM

- outrigger

2-4шт.

12

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 9/16 inch long

4-8шт.

13

S619347

PAD

PLATE - outrigger

2-4шт.

14

S243557

PIN

- mounting, Serial Range: plate-arm

2-4шт.

15

T37909

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

4-8шт.
