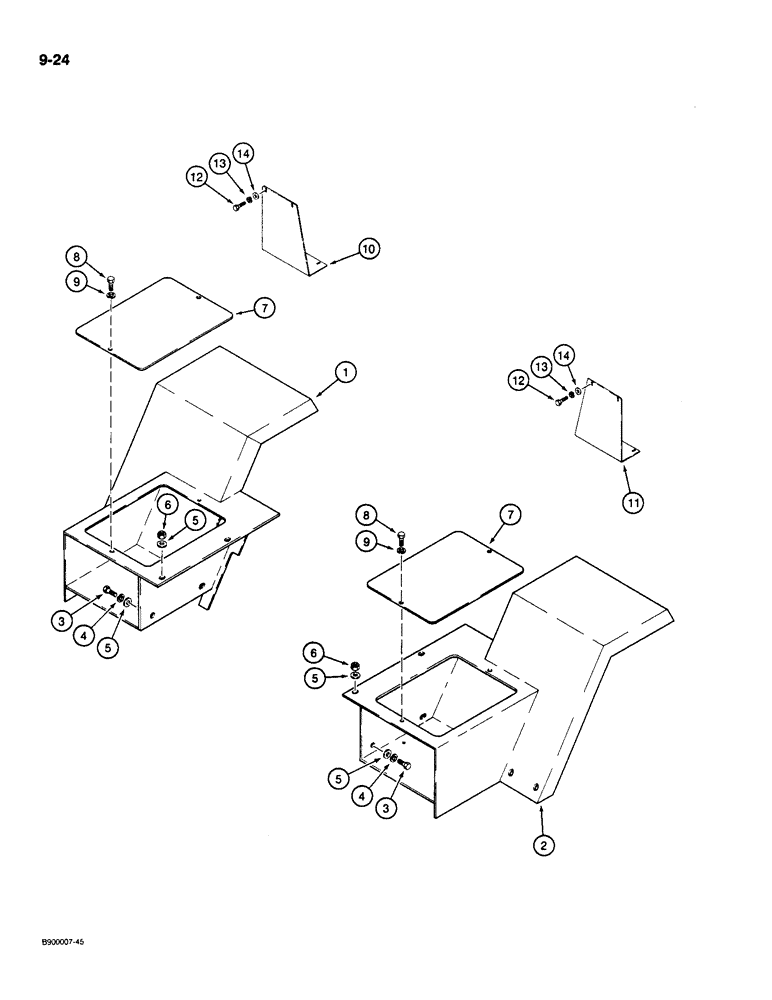

Запчасти Case 1085C (9-024) - FENDERS (09) - CHASSIS/ATTACHMENTS

1

S619516

FENDER ASSY.

FENDER - left front

1шт.

2

S619515

FENDER ASSY.

FENDER - right front

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened

8шт.

6

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

7

S241274

COVER

- access, battery and brake

2шт.

8

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

10

S517916

COVER

- rear, left-hand lamp

1шт.

11

S517915

COVER

- rear, right-hand lamp

1шт.

12

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

8шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

14

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

8шт.
