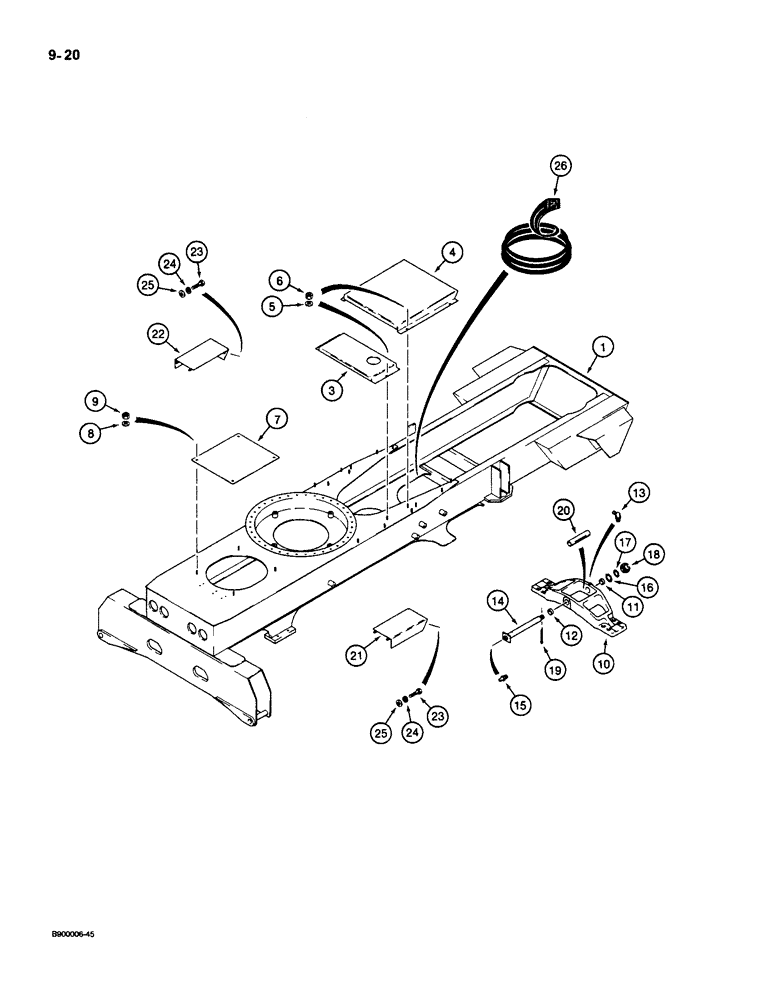

Запчасти Case 1085C (9-020) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

S957120

FRAME

- main, with rear outriggers

1шт.

2

S957121

FRAME

- main, with front and rear outriggers, not shown

2шт.

3

S517705

COVER

- transmission

1шт.

4

S619507

COVER

- torque converter

1шт.

5

S95569

WASHER

- special, hardened, 1/2 inch

6шт.

6

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

6шт.

7

S243548

COVER

PLATE - access, outrigger valve

1шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

9

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

10

S957042

BRACKET

- mounting, front axle to frame, Includes: Ref. 10 and 11

1шт.

11

S243214

BUSHING

- bracket, pivot pin, with grease hole

1шт.

12

S243700

BUSHING

- bracket, pivot pin, without grease hole

1шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

14

S517840

PIN

- pivot, Serial Range: bracket-frame

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

16

495-81249

WASHER,2.12" ID x 4.5" OD x 0.18" Thk

- flat, 2-1/8 x 4-1/2 x 3/16 inch

1шт.

17

495-81248

WASHER,1 7/8" x 4" x .179"

- flat, 1-7/8 x 4 x 3/16 inch

1шт.

18

25-1228

NUT

- hex, slotted, 1-3/4 inch NC

1шт.

19

432-2452

COTTER PIN,3/8" x 3 1/4"

Pin, Split (Cotter), 3/8" x 3 1/4"

1шт.

20

S243732

SPACER

- bushing

1шт.

21

S517731

STEP

- frame, right-hand, used on frame with rear outriggers only

1шт.

22

S517732

STEP

- frame, left-hand, used on frame with rear outriggers only

1шт.

23

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

25

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

26

REF

INSTRUCTION

TRIM - edge, protective, 1016 mm long, cut from L126477 bulk roll, see below

1шт.

L126477

MOLDING

TRIM - edge, protective, bulk roll

1шт.
