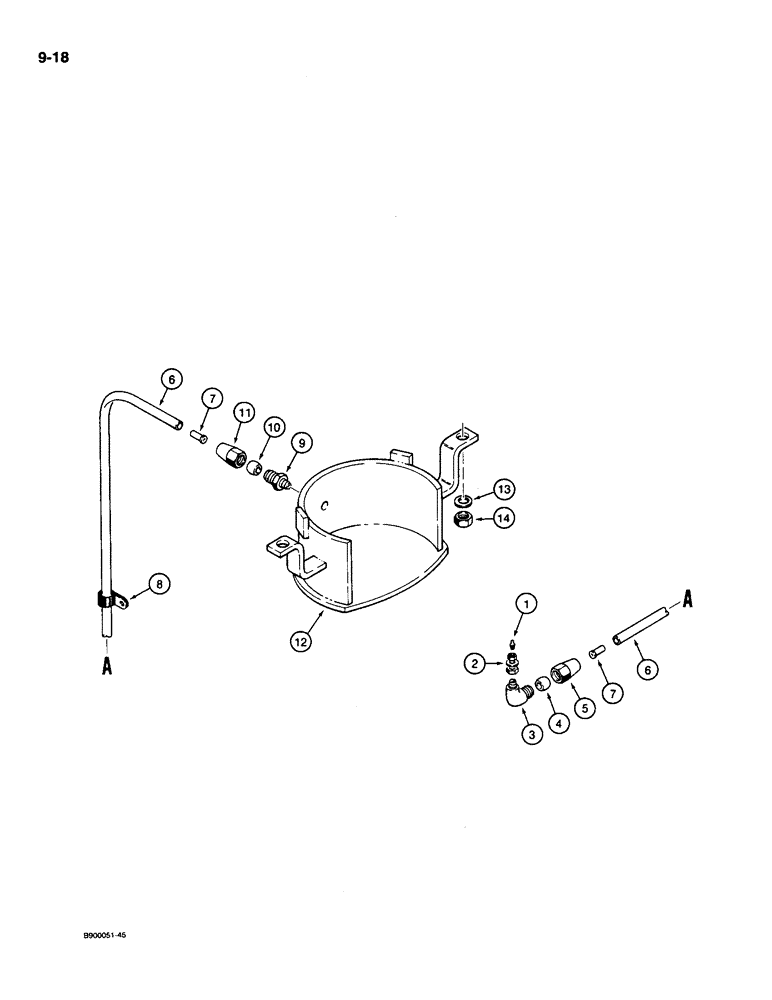

Запчасти Case 1085C (9-018) - SWING GEAR LUBRICATION (09) - CHASSIS/ATTACHMENTS

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

2

217-226

COUPLING

ADAPTER - bulkhead, 1/8 PT x 1-1/2 inch

1шт.

222-1847

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/8 inch PT, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

4

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

5

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

6

REF

INSTRUCTION

TUBE - nylon, lubrication line, 85 inch (2159 mm) long, cut from S118405 bulk, see below

1шт.

7

222-2446

INSERT,1/4" Tube

- nylon tube, 3/8 inch tube OD

2шт.

8

S77322

CLAMP

- tube, uses existing hardware mounting, Serial Range: swivel-turntable

1шт.

222-1839

FITTING,17/32"-24 x 1/8" NPT

ADAPTER - compression, 3/8 tube OD x 1/8 inch PT, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

10

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

11

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

12

S619250

RETAINER

- grease, swing gear

1шт.

13

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

14

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

2шт.

S118405

HOSE,600.00", SAE J844

600.00", SAE J844

1шт.
