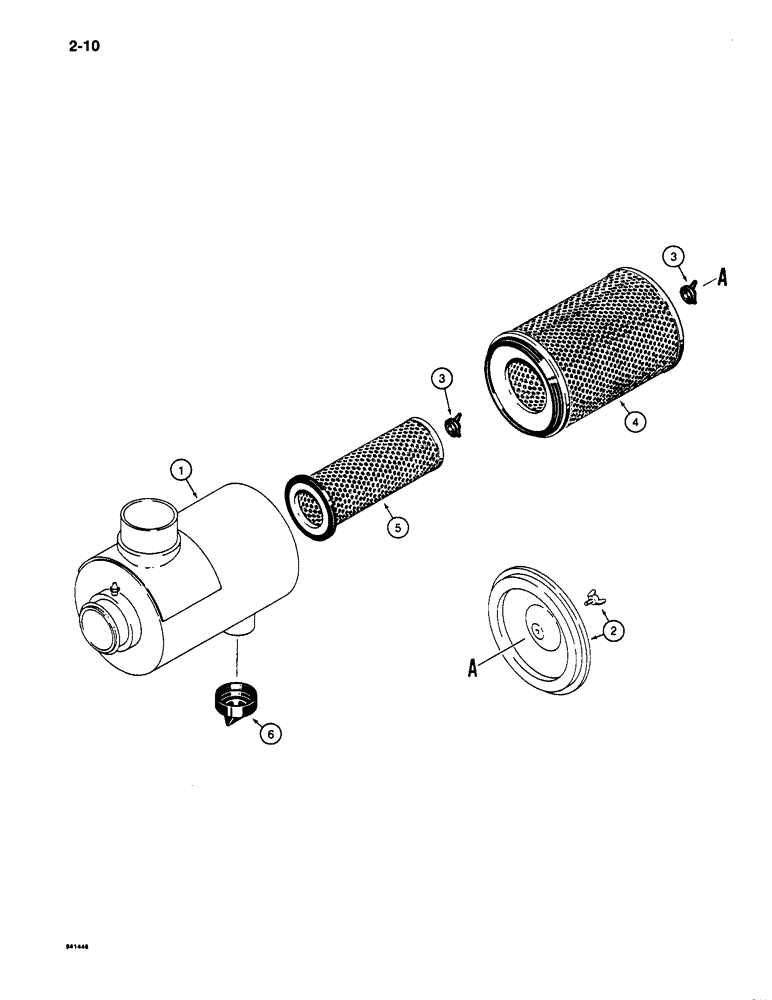

Запчасти Case 1085C (2-10) - AIR CLEANER ASSEMBLY (02) - ENGINE

A170613

AIR CLEANER

CLEANER ASSEMBLY - air, see Figure: 2-08 for mounting parts, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

N6881

COVER

ASSEMBLY - air cleaner, includes wing nut

1шт.

3

L35499

NUT

- wing, Serial Range: element-body

2шт.

4

R29295

FILTER, ELEMENT

ELEMENT - primary, outer

1шт.

5

R36361

FILTER, ELEMENT

ELEMENT - secondary, inner

1шт.

6

L30414

VALVE

- dust, rubber

1шт.
