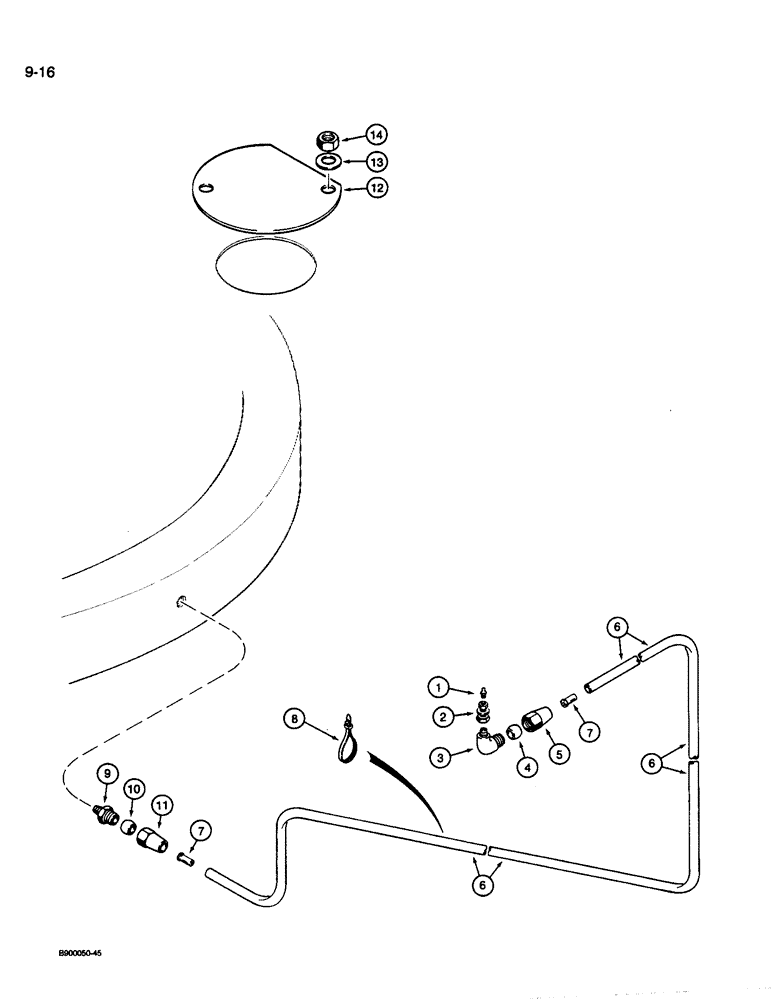

Запчасти Case 1085C (9-016) - TURNTABLE BEARING LUBRICATION (09) - CHASSIS/ATTACHMENTS

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

2

217-226

COUPLING

ADAPTER - bulkhead, 1/8 female PT x 5/8-18 male straight thread

1шт.

222-1847

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/8 inch PT, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

4

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

5

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

6

REF

INSTRUCTION

TUBE - nylon, lubrication line, 52 inch (1321 mm) long, cut from S118405 bulk, see below

1шт.

6

REF

INSTRUCTION

TUBE - nylon, lubrication line, 90 inch (2286 mm) long, cut from S118405 bulk, see below, used on models with 30 inch riser

1шт.

6

REF

INSTRUCTION

TUBE - nylon, lubrication line, 121 inch (3073 mm) long, cut from S118405 bulk, see below, used on models with 60 inch riser

1шт.

7

222-2446

INSERT,1/4" Tube

- nylon tube, 3/8 inch tube OD

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

222-1839

FITTING,17/32"-24 x 1/8" NPT

ADAPTER - compression, 3/8 tube OD x 1/8 inch PT, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

10

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

11

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

12

S76664

COVER

- bearing access hole

1шт.

13

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

14

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

S118405

HOSE,600.00", SAE J844

600.00", SAE J844

1шт.
