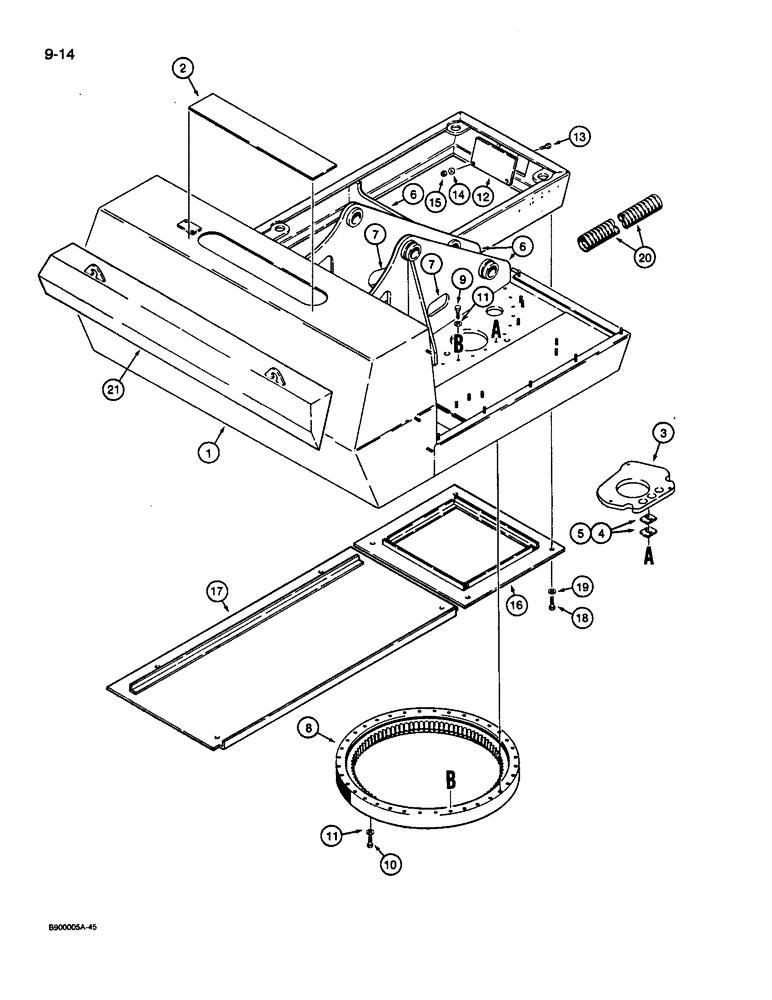

Запчасти Case 1085C (9-014) - TURNTABLE AND BEARING (09) - CHASSIS/ATTACHMENTS

1

S957061

ASSEMBLY

TURNTABLE - excavator

1шт.

2

S242214

PLATE

- cover, Serial Range: welds-turntable

1шт.

3

S517550

PLATE

SUPPORT - swing gearbox mounting, Serial Range: welds-turntable

1шт.

4

S84889

SHIM,.003" Thk

Swing gearbox mounting .003" Thk

1шт.

5

S84890

SHIM,.007" Thk

Swing gearbox mounting .007" Thk

1шт.

6

S121022

CONDUIT

GUARD - edge protector, 810 mm long, cut from S118481, item 20

3шт.

7

S119267

CONDUIT

GUARD - edge protector, 560 mm long, cut from S118481, item 20

2шт.

8

S508668

SLEWING RING

BEARING - turntable

1шт.

9

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 NC x 2-1/4 inch, grade 8 upper

34шт.

10

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8 lower

36шт.

11

S92353

WASHER

- special, hardened

70шт.

12

S243638

PLATE

COVER - turntable, used on models without front lamp, if used

1шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

14

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened

2шт.

15

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

16

S517717

COVER

GUARD - lower turntable, front

1шт.

17

S517718

COVER

GUARD - lower turntable, rear

1шт.

18

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

19

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

8шт.

20

S118481

PACKAGE

GUARD - edge, bulk roll, 25 mm ID x 1524 mm long

1шт.

21

S619709

WEIGHT

COUNTER weld on, 1015 kg (2238 lbs), standard on extendahoe units and optional on rigid arm units

1шт.

Component of S619712 Counterweight Kit which also includes (3) 16 oz spray cans of power tan paint (Part No. B17522) and instruction sheet 8-78930.

1шт.
