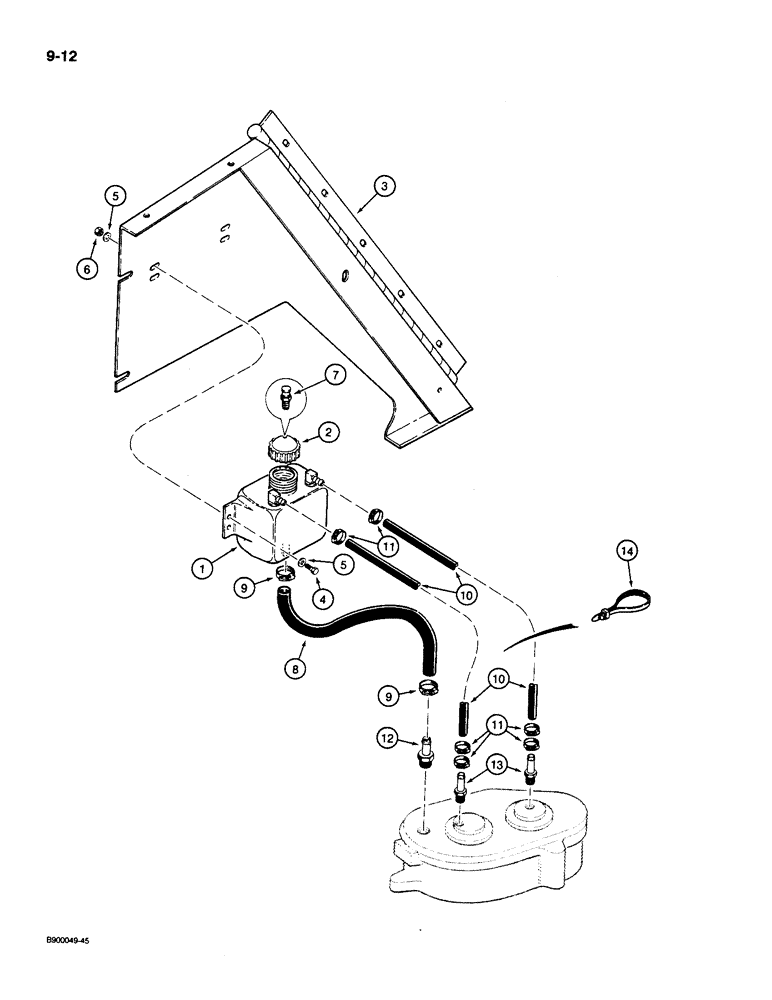

Запчасти Case 1085C (9-012) - SWING GEARBOX LUBRICATION (09) - CHASSIS/ATTACHMENTS

S516470

CONTAINER

RESERVOIR ASSEMBLY - lubricant, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - lubricant

1шт.

2

N8793

CAP

- reservoir

1шт.

3

S619521

SHROUD

SUPPORT - front access door, see Figure: 9-034 for, Serial Range: mounting-turntable

1шт.

4

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

5

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

8шт.

6

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

7

L33264

BREATHER

- reservoir

1шт.

8

REF

INSTRUCTION

HOSE - gearbox cover, 23 inch (584 mm) long, cut from S118576, see below

1шт.

8

REF

INSTRUCTION

HOSE - gearbox cover, 124 inch (3150 mm) long, cut from S118405, see below, use on models with 30 inch riser

1шт.

8

REF

INSTRUCTION

HOSE - gearbox cover, 170 inch (4318 mm) long, cut from S118405, see below, use on models with 60 inch riser

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - adj, 9/16 to 1-1/16 inch dia

2шт.

10

REF

INSTRUCTION

HOSE - to bearing covers 31 inch (787 mm) long, cut from S120557, see below

2шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj. #4, 0.25/0.62 Type F Worm

6шт.

12

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

- stem, straight, 5/8 hose ID x 3/8 inch PT

1шт.

13

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

- stem, straight, 1/4 hose ID x 1/8 inch PT

2шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S118576

HOSE,0.62" ID BULK

0.625" ID x 300.00" Bulk

1шт.

S120557

HOSE,0.25" ID x 300.00", SAE 30R6

Bulk Length 0.25" ID x 300.00", SAE 30R6

1шт.
