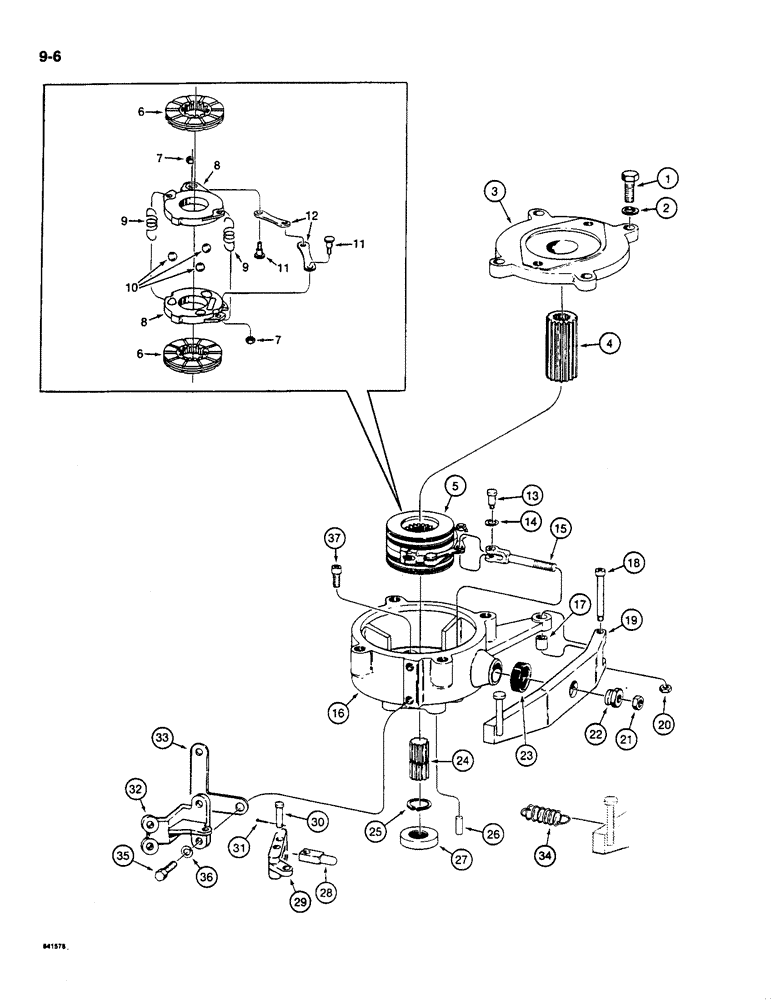

Запчасти Case 1085C (9-006) - SWING BRAKE (09) - CHASSIS/ATTACHMENTS

S616469

BRAKE ASSY.

BRAKE ASSEMBLY - swing, Includes: Ref. 1 - 37

1шт.

1

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

3

S38006

COVER

- brake housing

1шт.

4

S240926

COUPLING,13T Internal / 25T External

- splined

1шт.

5

S242977

DISC

BRAKE ASSEMBLY - disc, Includes: Ref. 6 - 12

1шт.

6

S81615

GASKET

DISC - brake

2шт.

S216242

CLUTCH DISC

ACTUATOR ASSEMBLY - brake, Includes: Ref. 7 - 12

1шт.

7

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

8

S68704

DISC

ACTUATOR - brake

2шт.

9

S68705

SPRING

- actuator

2шт.

10

S68703

BALL

- actuator, 3/4 inch diameter

3шт.

11

S105785

STUD

-, Serial Range: link-actuator

2шт.

12

S68707

LINK

- brake actuator

2шт.

13

S66646

BOLT,5/16" x 3/4"

- brake, Serial Range: rod-link

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

S64912

YOKE

CLEVIS AND ROD - brake actuator

1шт.

16

S603824

HOUSING

- brake

1шт.

17

S64921

BUSHING

- brake, Serial Range: housing-lever

1шт.

18

S64920

BOLT,5/16" x 2"

- brake, Serial Range: housing-lever

1шт.

19

S203304

LEVER

- brake actuator

1шт.

20

131-205

LOCK NUT,5/16"-18

NUT - hex, self-locking, 5/16 inch NC

1шт.

21

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8 inch NF

1шт.

22

S64911

NUT

- special

1шт.

23

S64913

BOOT

BOLT - dust, housing

1шт.

24

S203305

GEAR SHAFT

SHAFT - connecting, splined

1шт.

25

B18206

SNAP RING,#87, Ext

Ring, Snap, , shaft #87, Ext

1шт.

26

S64915

DOWEL

PIN - dowel, brake, Serial Range: housing-gearbox

1шт.

27

S64311

OIL SEAL

- oil

1шт.

28

S64910

PLUNGER

- brake actuator cable

1шт.

29

S230202

LEVER

-, Serial Range: cable-plunger

1шт.

30

S10717

PIN

- clevis, 1/4 x 1 inch

2шт.

31

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

32

S510472

BRACKET

- mounting, cable

1шт.

33

S230205

BRACKET

- lever return spring

1шт.

34

S202938

SPRING

- lever return

1шт.

35

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

36

492-11038

LOCK WASHER,3/8"

2шт.

37

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - hex socket head, 3/8 NC x 1-1/4 inch

3шт.

B17423

LOCTITE

- 271 red, 50 ml bottle, use between item 16 and the swing gearbox cover

1шт.

B17422

LOCTITE

- 242 blue, 50 ml bottle, use with item 37 bolts

1шт.
