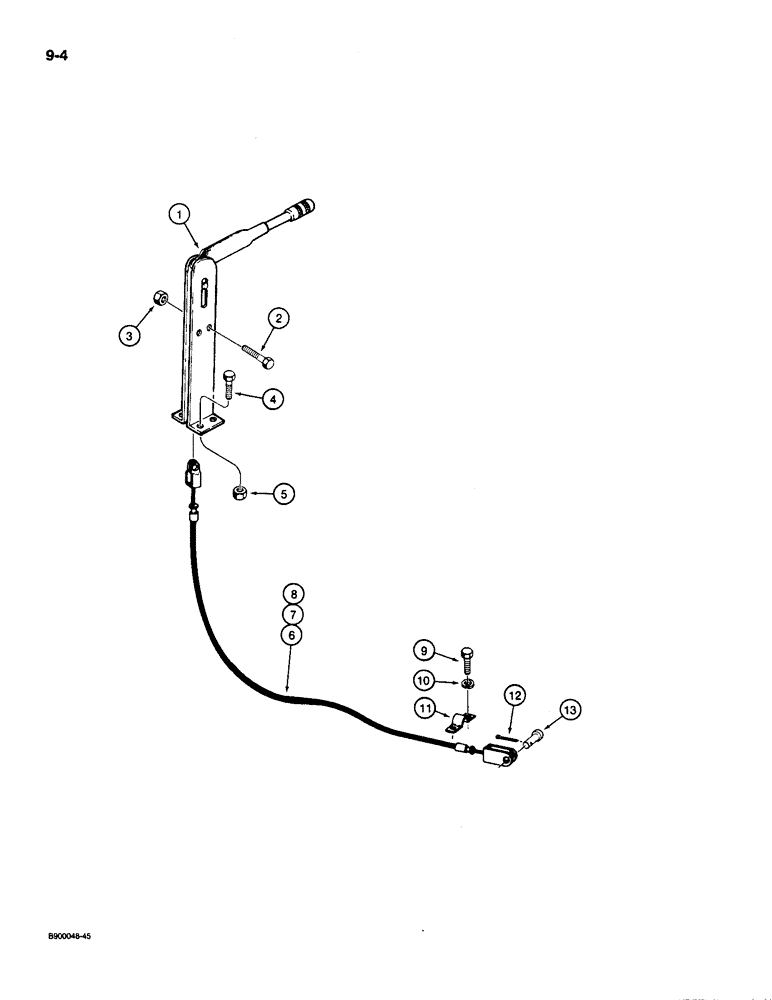

Запчасти Case 1085C (9-004) - SWING BRAKE LEVER AND CABLE (09) - CHASSIS/ATTACHMENTS

1

S517680

LEVER

- swing brake

1шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

3

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

2шт.

4

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

4шт.

5

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

6

S33995

CABLE

- swing brake, models without a cab riser

1шт.

7

S506287

CABLE

- swing brake, used with 30 inch riser

1шт.

8

S504696

CABLE

- swing brake, used, with 60 inch riser

1шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

A55980

CLAMP

- brake cable

1шт.

12

32-68

COTTER PIN,3/32" x 1/2"

PIN - cotter, 3/32 x 1/2 inch

1шт.

13

S10715

PIN

- clevis, 1/4 x 7/8 inch

1шт.
