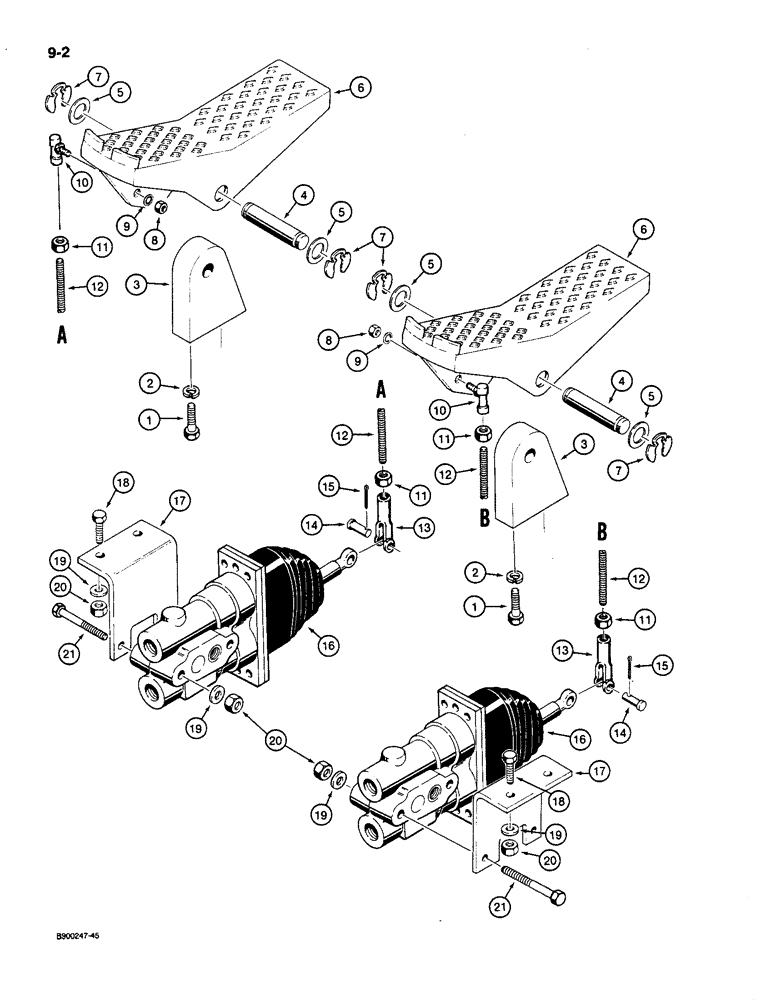

Запчасти Case 1085C (9-002) - FOOT PEDAL CONTROLS (09) - CHASSIS/ATTACHMENTS

1

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

3

S517763

BRACKET

- foot pedal mounting

2шт.

4

S243475

SHAFT

PIN - pedal mounting

2шт.

5

96-81006

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

- flat, 41/64 x 1-3/64 x 1/8 inch, hardened, use as spacer

1шт.

6

S619490

PEDAL

- foot, hydraulic control

2шт.

7

D95096

SNAP RING,M15.88 x 1.27mm Thk

RETAINER - foot pedal

4шт.

8

231-2446

NUT,3/8"-24, GB

NUT - hex, self-locking, 3/8 inch NF

2шт.

9

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

10

D38296

JOINT

- ball, 3/8 inch

2шт.

11

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

4шт.

12

L45350

STUD

- special, 3/8 inch NF

2шт.

13

213-41

ADJUSTABLE CLEVIS,3/8"-24

light 3/8"-24

2шт.

14

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

15

32-616

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

16

S517336

VALVE

ASSEMBLY - foot control, parts list Figure: 8-114

2шт.

17

S243220

BRACKET

- mounting, foot control valve

2шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

4шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

8шт.

20

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

21

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

4шт.
