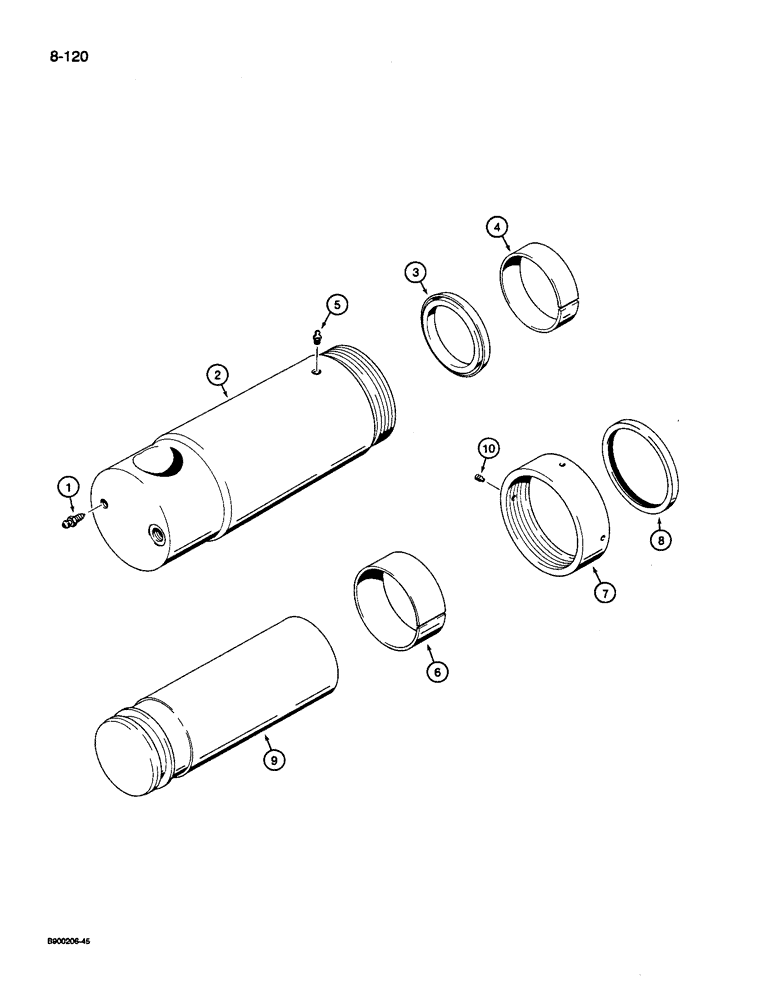

Запчасти Case 1085C (8-120) - LOCKOUT CYLINDER ASSEMBLY (08) - HYDRAULICS

S619495

CYLINDER

ASSEMBLY - 89 ID x 136 mm stroke, lockout, Includes: Ref. 1 - 10

2шт.

1

A41491

BLEEDER,1/4" - 28 x 23.37mm

- air bleed

1шт.

2

S517831

TUBE ASSY.

TUBE - cylinder

1шт.

3

S243692

SEAL

- U-cup

1шт.

4

S243690

RING

- wear, rod

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

6

S243691

RING

- wear, tube

1шт.

7

S517835

GLAND

- cap

1шт.

8

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

9

S517834

ROD

- piston

1шт.

10

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - set, hex socket, 1/4 NF x 1/4 inch, cup point

1шт.
