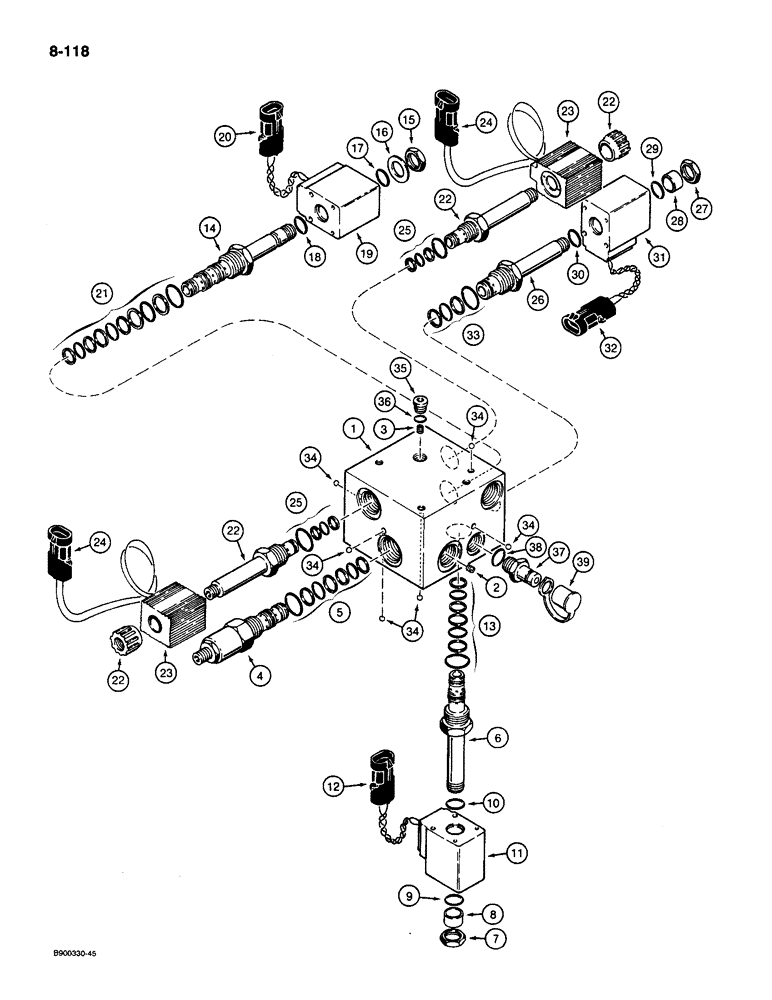

Запчасти Case 1085C (8-118) - LOWER MANIFOLD VALVE ASSEMBLY (08) - HYDRAULICS

S517869

VALVE

ASSEMBLY - lower manifold, Includes: Ref. 1 - 39

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - manifold

1шт.

2

S301184

ORIFICE

PLUG - special, orifice, port F01

1шт.

3

S301185

ORIFICE

PLUG - special, orifice, port F02

1шт.

4

S301177

VALVE

- relief, Includes: Ref. 5

1шт.

5

S301181

SEAL KIT

- seal, S301177 valve

1шт.

S301187

CONTROL

VALVE ASSEMBLY - directional control, 2 position, 3 way, Includes: Ref. 6 - 13

1шт.

6

S301347

CARTRIDGE

VALVE - solenoid, 2 position, 3 way

1шт.

7

S301348

NUT

- hex, special

1шт.

8

S301349

SPACER

- solenoid

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

1шт.

S301350

SEAL PACKAGE

COIL ASSEMBLY - solenoid, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

COIL - solenoid

1шт.

12

S301197

SEAL PACKAGE

CONNECTOR - electrical, coil

1шт.

13

S301183

SEAL KIT

- seal, S301187 valve

1шт.

S301188

CONTROL

VALVE ASSEMBLY - directional control, 2 position, 4 way, Includes: Ref. 14 - 21

1шт.

14

S301351

CARTRIDGE

VALVE - solenoid, 2 position, 4 way

1шт.

15

S301348

NUT

- hex, special

1шт.

16

S301352

WASHER

- solenoid, special

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

1шт.

S301350

SEAL PACKAGE

COIL ASSEMBLY - solenoid, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

COIL - solenoid

1шт.

20

S301197

SEAL PACKAGE

CONNECTOR - electrical, coil

1шт.

21

S301193

SEAL KIT

- seal, S301188 valve

1шт.

S301189

VALVE POPPET

VALVE ASSEMBLY - poppet, 2 way, Includes: Ref. 22 - 25

2шт.

22

S301194

SEAL KIT

VALVE - poppet

1шт.

23

S301198

COIL

- solenoid

1шт.

24

S301197

SEAL PACKAGE

CONNECTOR - electrical, coil

1шт.

25

S301194

SEAL KIT

- seal, S301189 valve

2шт.

S301190

CONTROL

VALVE ASSEMBLY - directional control, 2 position, 2 way, Includes: Ref. 26 - 39

1шт.

26

S301353

CARTRIDGE

VALVE - solenoid, 2 way

1шт.

27

S301348

NUT

- hex, special

1шт.

28

S301349

SPACER

- solenoid

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

30

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

1шт.

S301350

SEAL PACKAGE

COIL ASSEMBLY - solenoid, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

COIL - solenoid

1шт.

32

S301197

SEAL PACKAGE

CONNECTOR - electrical, coil

1шт.

33

S301182

SEAL KIT

- seal, S301190 valve

1шт.

34

NSS

NOT SOLD SEPARAT

PLUG - expander

6шт.

35

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 36 Hex Soc, 7/16"-20 ORB

1шт.

36

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

37

S301180

FITTING

COUPLING - quick disconnect, Includes: Ref. 38

1шт.

39

H434163

DUST CAP

CAP - coupler, dust

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
