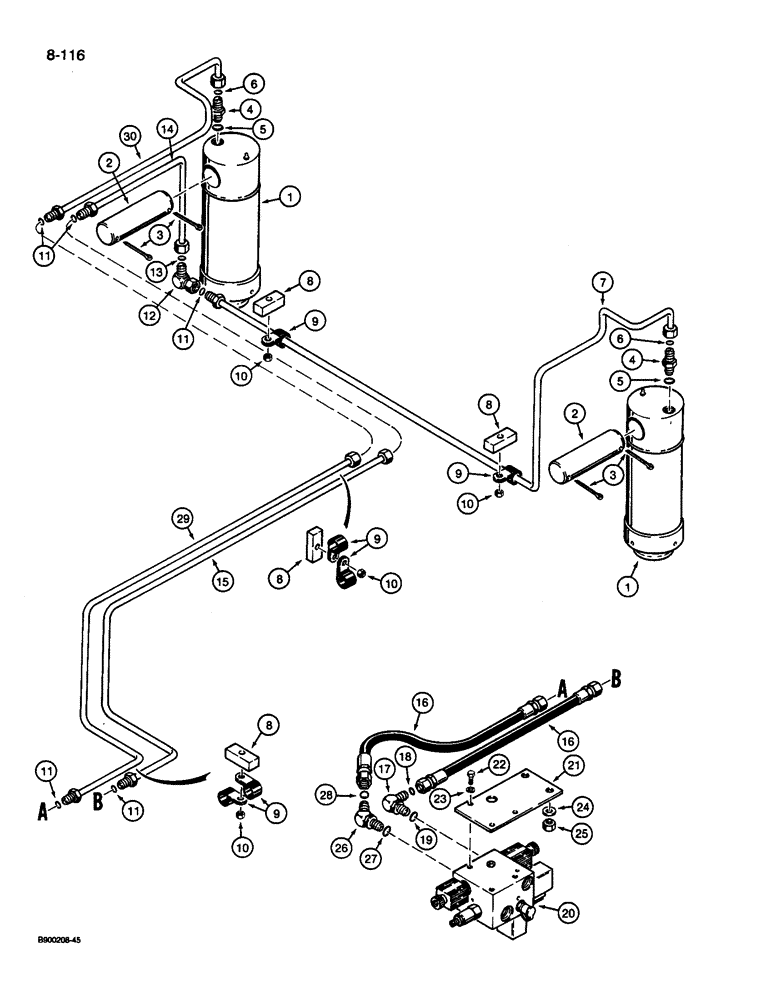

Запчасти Case 1085C (8-116) - FRONT AXLE OSCILLATION LOCK (08) - HYDRAULICS

1

S619495

CYLINDER

ASSEMBLY - lockout, parts list Figure: 8-120

2шт.

2

S243486

PIN

- lock, cylinder

2шт.

3

32-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

4

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 5 and 6 11/16"-16 ORFS x 9/16"-18 ORB

2шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face seal end -012, 90 Duro, .364" ID x .070" Thk

1шт.

7

S517708

TUBE

- right-hand front, lock-out cylinder to lower manifold valve

1шт.

8

S243565

SPACER

- clamp, tube to main frame

4шт.

9

49845

CLAMP

- harness, 10 mm ID

6шт.

10

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

4шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face seal -012, 90 Duro, .364" ID x .070" Thk

5шт.

12

201-319

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

- 90 degree, 11/16-16 inch face seal x swivel str thread, Incl Ref 13

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face seal end -012, 90 Duro, .364" ID x .070" Thk

1шт.

14

S517709

TUBE

- lower front, right-hand lockout cylinder to lower manifold valve

1шт.

15

S517795

TUBE

- lower rear, right-hand lockout cylinder to lower manifold valve

1шт.

16

S243564

HOSE

- 508 mm long, tubes to lower manifold valve

2шт.

17

201-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

- 90 degree, 11/16-16 face seal x 3/4-16 inch adj O-ring, Includes: Ref. 18 and 19

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face seal end -012, 90 Duro, .364" ID x .070" Thk

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

20

S517869

VALVE

ASSEMBLY - lower manifold, parts list Figure: 8-118

1шт.

21

S243346

PLATE

- mounting, valve

1шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

24

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

25

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

26

201-344

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

- 45 degree, 11/16-16 face seal x 3/4-16 inch adj O-ring, Includes: Ref. 27 and 28

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

28

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face seal end -012, 90 Duro, .364" ID x .070" Thk

1шт.

29

S517797

TUBE

- upper rear, left-hand lockout cylinder to lower manifold valve

1шт.

30

S517706

TUBE

- upper front, left-hand lockout cylinder to lower manifold valve

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
