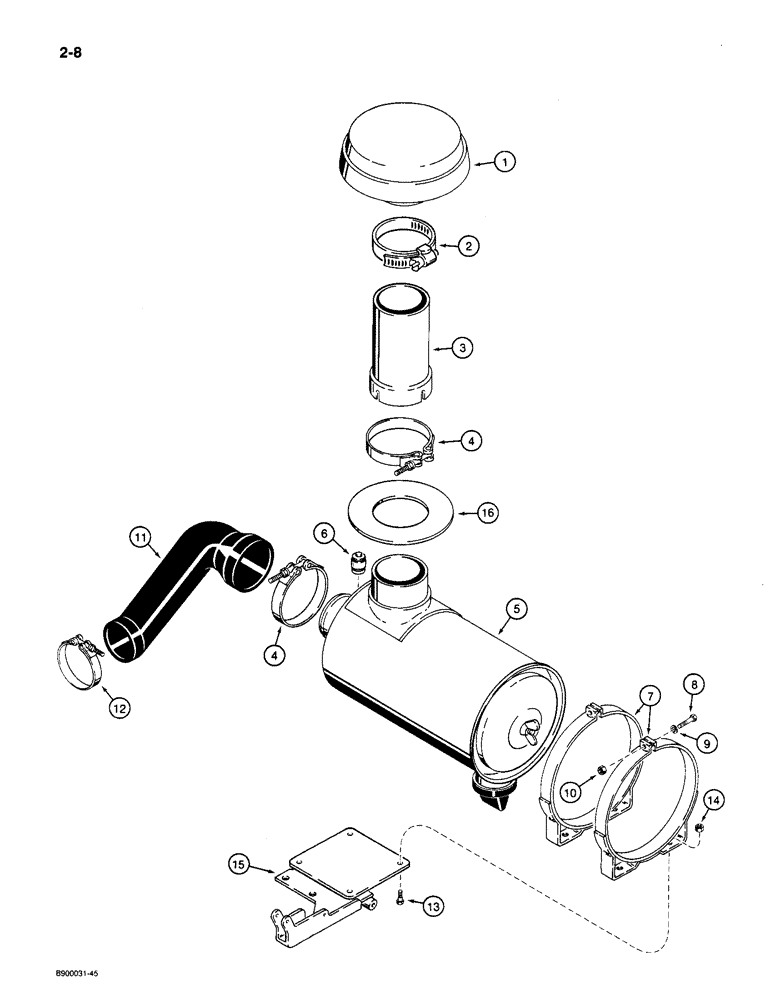

Запчасти Case 1085C (2-08) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

L10659

CAP

- ASSEMBLY - air cleaner, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

CAP - air cleaner

1шт.

2

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - adj., 4 - 5 inch dia.

1шт.

3

S243577

AIR INTAKE TUBE,114.3 - 115.3 mm OD x 145 mm L

TUBE - air cleaner inlet

1шт.

4

214-362

CLAMP,#118, 4.56"-4.87", T-Bolt

- adj., 4-9/16 - 4-7/8 inch dia.

2шт.

5

A170613

AIR CLEANER

CLEANER ASSEMBLY - air, parts list Figure: 2-10

1шт.

6

A59569

INDICATOR

- restriction, air cleaner

1шт.

A16574

BAND

CLAMP ASSEMBLY - air cleaner, Includes: Ref. 7 - 10

2шт.

7

NSS

NOT SOLD SEPARAT

CLAMP - air cleaner

1шт.

8

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

11

S517735

HOSE

- air cleaner

1шт.

12

214-379

CLAMP,#84, 3.50"-3.81", T-Bolt

- adj. 3-1/2 - 3-13/16 inch dia.

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

14

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

4шт.

15

S619452

BRACKET

- air cleaner and accelerator mounting, see Figure: 3-06, item 23

1шт.

16

S241675

PROTECTOR

PAD - air cleaner

1шт.
