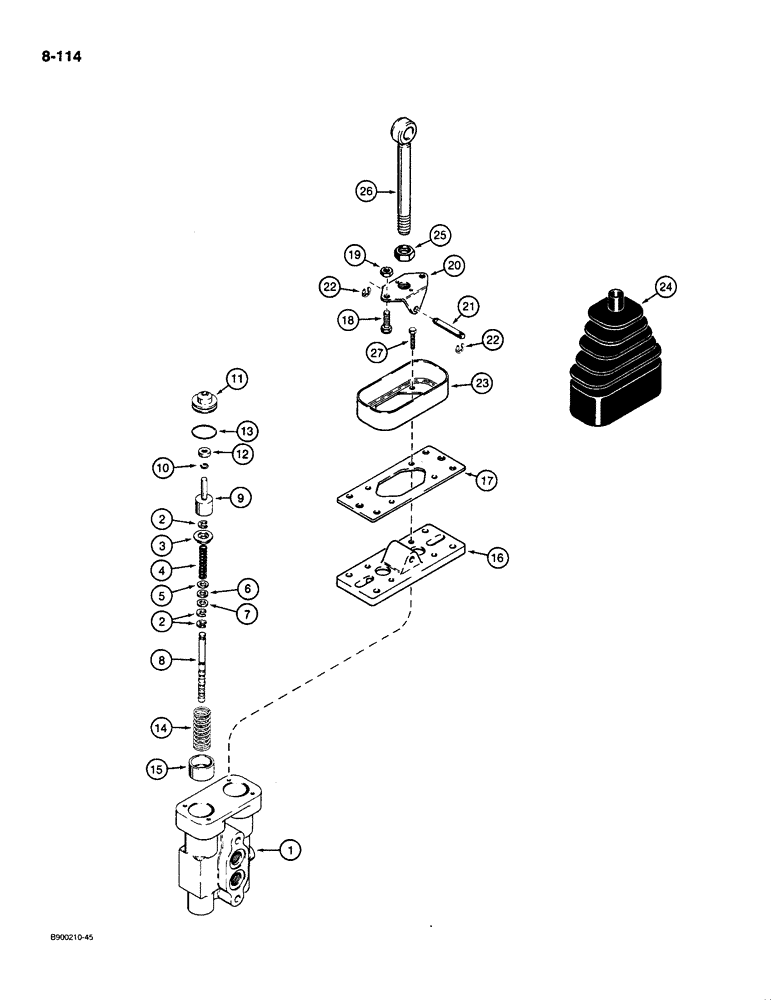

Запчасти Case 1085C (8-114) - FOOT CONTROL VALVE ASSEMBLY (08) - HYDRAULICS

S517336

VALVE

ASSEMBLY - foot control, Includes: Ref. 1 - 27

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

S301333

SPOOL

ASSEMBLY - valve, Includes: Ref. 2 - 8

2шт.

2

NSS

NOT SOLD SEPARAT

RING - retaining

3шт.

3

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - spool, inner

1шт.

5

NSS

NOT SOLD SEPARAT

SHIM - 7/16 OD x 15/64 ID x .01 inch thick

1шт.

6

NSS

NOT SOLD SEPARAT

SHIM - 7/16 OD x 15/64 ID x .02 inch thick

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - 7/16 OD x 15/64 ID x .06 inch thick

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

S301335

PLUNGER

ASSEMBLY - valve, Includes: Ref. 9 - 13

2шт.

9

S301339

PIN

PLUNGER - valve

1шт.

10

S301304

RING

- snap, plunger

1шт.

11

1978195C1

GUIDE

- valve

1шт.

12

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

- plunger

1шт.

13

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

14

S301334

SPRING

- spool, outer

2шт.

15

1978192C1

RACE

SLEEVE - spool

2шт.

16

1978216C1

LARGE PLATE

PLATE - plasic, lower

1шт.

17

1978217C1

LARGE PLATE

PLATE - metal, upper

1шт.

18

S301336

SCREW

BOLT - special, spool actuator

2шт.

19

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, 1/4 inch NC

2шт.

20

1978219C1

CAM

PIVOT - control valve

1шт.

21

1978220C1

PIN

- pivot

1шт.

22

S301306

RING

- retaining

2шт.

23

1978218C1

LARGE PLATE

COLLAR - boot

1шт.

24

S301337

BOOT

- dust

1шт.

25

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

26

S301338

ROD

LEVER - valve, foot control

1шт.

27

163-13

SCREW,Hex, #10 - 24 x 3/4"

- machine, hex, no. 10 NC x 3/4 inch

4шт.
