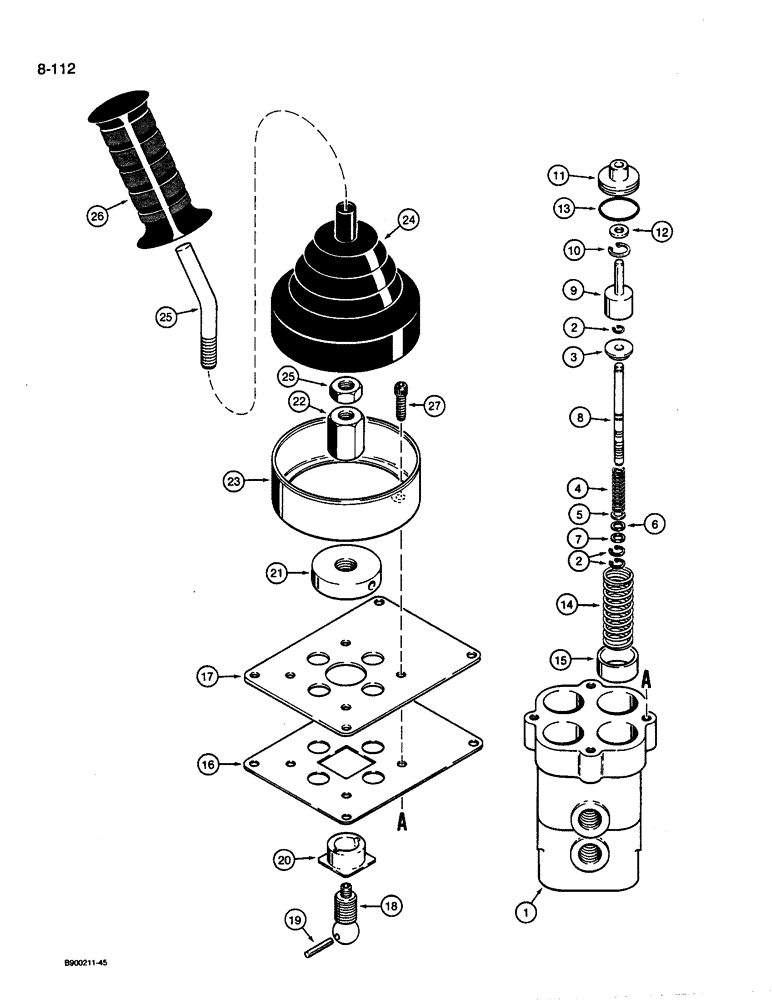

Запчасти Case 1085C (8-112) - HAND CONTROL VALVE ASSEMBLIES (08) - HYDRAULICS

S517338

VALVE

ASSEMBLY - hand control, right-hand, Includes: Ref. 1 - 27

1шт.

S517923

VALVE

ASSEMBLY - hand control, left-hand, not shown, Includes: Ref. 1 - 27

1шт.

S301289

CONTROL

VALVE ASSEMBLY - control, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

S301294

SPOOL

ASSEMBLY - valve, Includes: Ref. 2 - 8

4шт.

2

NSS

NOT SOLD SEPARAT

RING - retaining

3шт.

3

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - spool, inner

1шт.

5

NSS

NOT SOLD SEPARAT

SHIM - 7/16 OD x 15/64 ID x .01 inch thick

1шт.

6

NSS

NOT SOLD SEPARAT

SHIM - 7/16 OD x 15/64 ID x .02 inch thick

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - 7/16 OD x 15/64 ID x .06 inch thick

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

S301295

PLUNGER

ASSEMBLY - valve, Includes: Ref. 9 - 13

4шт.

9

1978194C1

PLUNGER

- valve

1шт.

10

S301304

RING

- snap, plunger

1шт.

11

S301305

GUIDE

- valve

1шт.

12

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

- plunger

1шт.

13

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

14

S301302

SPRING

- spool, outer

4шт.

15

1978192C1

RACE

SLEEVE - spool

4шт.

16

S301296

PLATE

- mounting, lower

1шт.

17

S301303

PLATE

- mounting, upper

1шт.

18

S301301

BALL

- lever pivot

1шт.

19

S301300

PIN

- pivot ball

1шт.

20

S301298

RACE

SLEEVE - pivot ball

1шт.

21

S301297

PLATE

- control valve

1шт.

22

S301299

ADAPTER

- lever

1шт.

23

S301290

PLATE

COLLAR - boot

1шт.

24

S301291

BOOT

- dust

1шт.

S301292

HANDLE

LEVER ASSEMBLY - valve, hand control, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

LEVER - valve, hand control, includes nut

1шт.

26

S301310

GRIP

- lever

1шт.

27

61-32548

HEX SOC SCREW,1/4"-20 x 3"

BOLT - hex socket, 1/4 NC x 3 inch

4шт.
