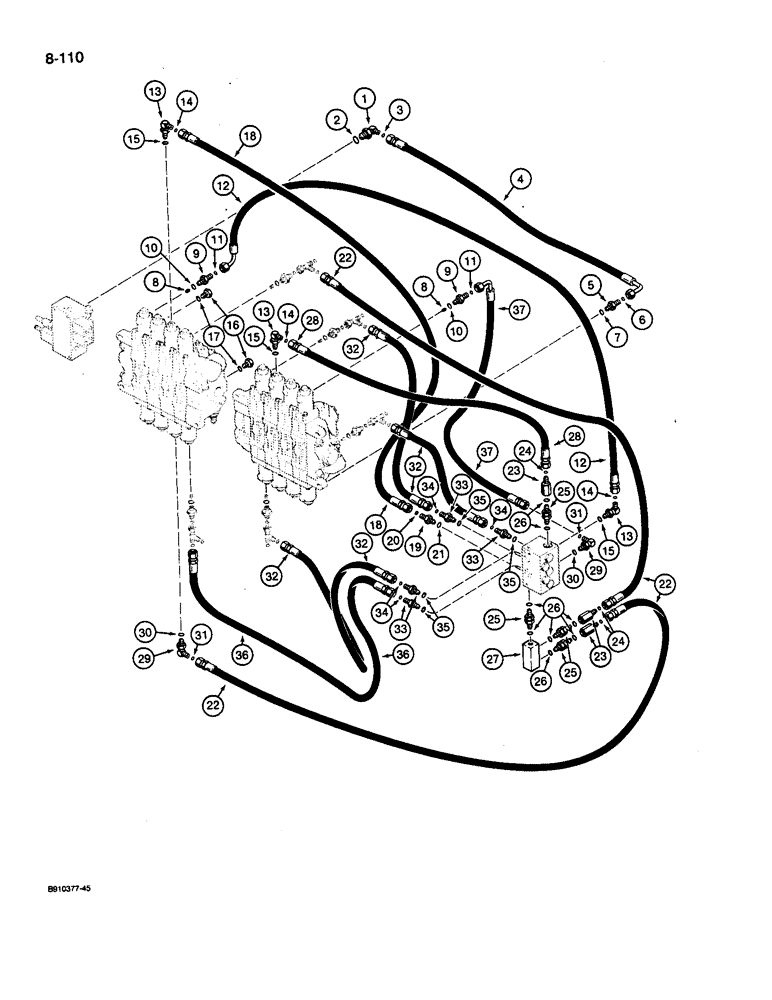

Запчасти Case 1085C (8-110) - HYDRAULIC HAND AND FOOT CONTROL CIRCUIT, CONTROL VALVES TO PILOT MANIFOLD AND HIGH SPEED VALVES (08) - HYDRAULICS

1

201-325

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

- 90 degree adj, 9/16-18 face x 3/4-16 inch O-ring, Includes: Ref. 2 and 3

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

4

S243441

HOSE

- 1100 mm long, pilot manifold valve to arm and swing control valve

1шт.

5

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ADAPTER - straight, 9/16-18 inch face seal x O-ring boss, Includes: Ref. 6 and 7

1шт.

6

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

8

S243704

ORIFICE

SCREW - set, orifice

2шт.

9

S243703

CONNECTOR, ELEC

ADAPTER - special, straight, Includes: Ref. 10 and 11

2шт.

11

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

12

S243441

HOSE

- 1100 mm long, high speed auxiliary section to high speed valve, port FSC

1шт.

13

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

90°, 9/16"-18 x 9/16"-18, Adj, ORFS, Includes Ref. 14 & 15

3шт.

14

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

16

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 17 Hex Hd, 9/16"-18 ORB

2шт.

18

S243657

HOSE

- 900 mm long, upper, boom and tool control valve to high speed valve, port P5

1шт.

19

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ADAPTER - straight, 9/16-18 inch face seal x O-ring boss, Includes: Ref. 20 and 21

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

22

S243666

HOSE

- 1000 mm long, boom and tool control valve to manifold block at port T1 on high speed valve

2шт.

23

S121034

VALVE

- check, Includes: Ref. 24

3шт.

24

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

25

S121033

UNION

ADAPTER - special, straight, Includes: Ref. 25

4шт.

27

S243667

MANIFOLD

BLOCK - manifold

1шт.

28

S243665

HOSE

- 500 mm long, arm and swing control valve to high speed valve, port T2

1шт.

29

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

90°, 9/16"-18 x 9/16"-18, Adj, ORFS, Includes Ref. 30 & 31

2шт.

31

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

32

S243656

HOSE

- 600 mm long, arm and swing control valve to high speed valve, ports P1, P2, and P3

3шт.

33

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ADAPTER - straight, 9/16-18 inch face seal x O-ring boss, Includes: Ref. 34 and 35

4шт.

34

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

36

S243657

HOSE

- 900 mm long, lower, boom and tool control valve to high speed valve, port P4

1шт.

37

S243445

HOSE

- 500 mm long, arm and swing control valve to high speed valve, port FHT

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
