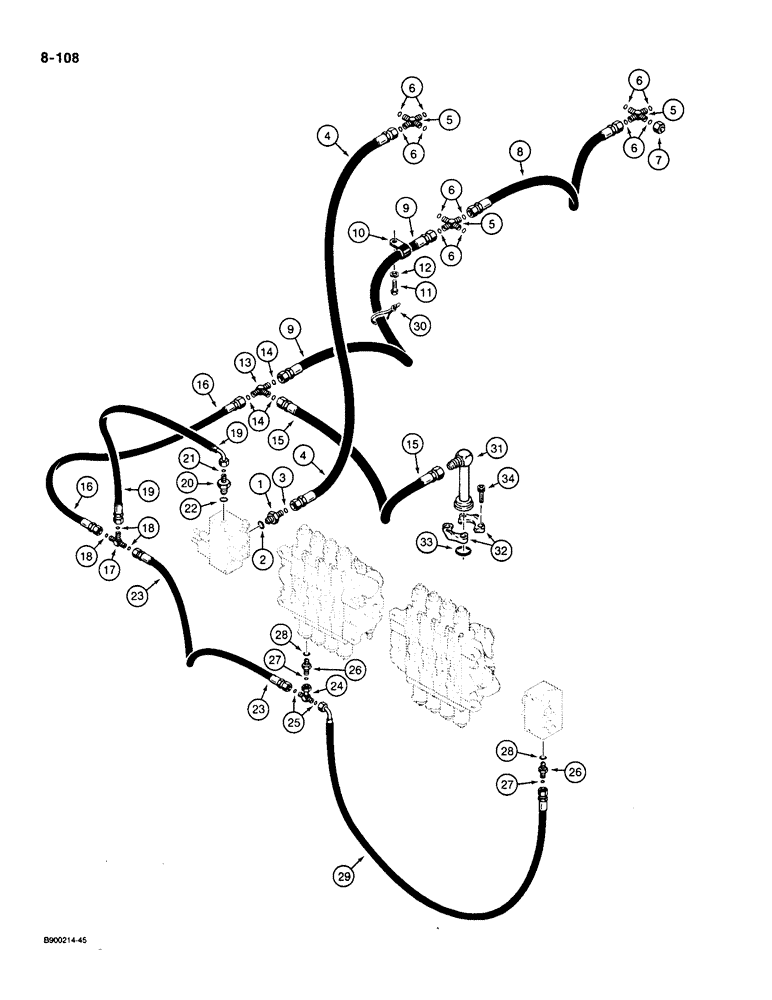

Запчасти Case 1085C (8-108) - HYDRAULIC HAND AND FOOT CONTROL CIRCUIT, SUPPLY AND RETURN LINES (08) - HYDRAULICS

1

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 11/16-16 face seal x 3/4-16 inch O-ring, Includes: Ref. 2 and 3

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face seal end -012, 90 Duro, .364" ID x .070" Thk

1шт.

4

S243658

HOSE

- 1550 mm long, supply from pilot manifold valve to hand and foot control valves

1шт.

5

201-921

4 WAY CONNECTION,11/16"-18 ORFS

CROSS - 11/16-16 inch face seal, connects hoses from hand and foot control valves to supply and return lines, Includes: Ref. 6

3шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face seal -012, 90 Duro, .364" ID x .070" Thk

4шт.

7

201-900

CAP,11/16" - 16 ORFS

- 11/16-16 inch face seal, if used

1шт.

8

S243480

HOSE

- 150 mm long, return, Serial Range: cross-cross

1шт.

9

S243483

HOSE

- 1100 mm long, return, Serial Range: cross-tee

1шт.

10

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

1шт.

11

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

201-408

TEE,11/16"-16 ORFS

- 11/16-16 inch face seal branch x face seal, Includes: Ref. 14

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face seal -012, 90 Duro, .364" ID x .070" Thk

3шт.

15

S243631

HOSE

- 1000 mm long, return, from tee to swivel port No. 4

1шт.

16

S243446

HOSE

- 900 mm long, Serial Range: tee-tee

1шт.

17

201-430

TEE,9/16"-18 ORFS

- 9/16-18 inch face seal branch x face seal, Includes: Ref. 18

1шт.

18

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal -011, 90 Duro, .301" ID x .070" Thk

3шт.

19

S243445

HOSE

- 500 mm long, tee to pilot manifold valve

1шт.

20

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 9/16-18 face seal x 3/4-16 inch O-ring, hose to pilot manifold valve, see Figure: 8-042, item 9, Includes: Ref. 21 and 22

1шт.

21

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

23

S243663

HOSE

- 300 mm long, Serial Range: tee-tee

1шт.

24

201-426

TEE,9/16"-18 ORFS x 9/16"-18 Sw Br

- 9/16-18 inch female swivel branch x face x face, Includes: Ref. 25

1шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal -011, 90 Duro, .301" ID x .070" Thk

2шт.

26

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ADAPTER - straight, 9/16-18 inch face seal x O-ring boss, Includes: Ref. 27 and 28

2шт.

27

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal -011, 90 Duro, .301" ID x .070" Thk

1шт.

29

S243441

HOSE

- 1100 mm long, tee to high speed valve, port T, see Figure: 8-042, item 10

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

31

S243572

TUBE,0.75" OD x 4.5" L

- special, at ports on swivel housing

1шт.

32

A16961

FLANGE

- split, Serial Range: tube-housing

2шт.

33

S6578

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- tube

1шт.

34

61-33820

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - hex socket head, 3/8 NC x 1-1/4 inch

4шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
