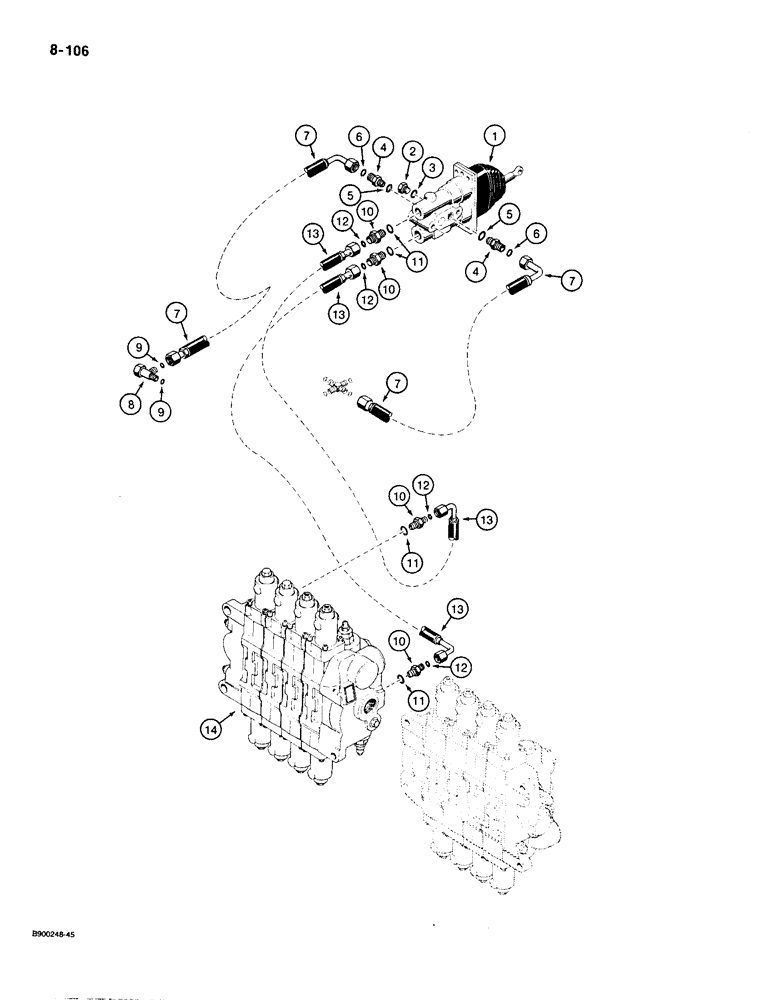

Запчасти Case 1085C (8-106) - HYDRAULIC FOOT CONTROL CIRCUIT, AUXILIARY RIGHT-HAND FOOT CONTROL VALVE TO BOOM & TOOL CONTROL VALVE (08) - HYDRAULICS

1

S517336

VALVE

ASSEMBLY - foot control, parts list Figure: 8-114

1шт.

2

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 3 Hex Hd, 9/16"-18 ORB

1шт.

4

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 5 and 6 11/16"-16 ORFS x 9/16"-18 ORB

2шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face seal end -012, 90 Duro, .364" ID x .070" Thk

1шт.

7

S243479

HOSE

- 720 mm long, from side ports on foot control valve to cross and tee under cab floor plate

2шт.

8

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

- 11/16-16 inch face seal branch x female swivel x face, Includes: Ref. 9

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face seal ends -012, 90 Duro, .364" ID x .070" Thk

2шт.

10

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ADAPTER - straight, 9/16-18 inch face seal x O-ring boss, Includes: Ref. 11 and 12

4шт.

12

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

13

S243442

HOSE

- 2600 mm long, from rear ports on foot control valve to boom and tool control valve assembly

2шт.

14

1978153C1

DISTRIBUTOR

VALVE ASSEMBLY - control, boom and tool, parts list Figure: 8-018

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
