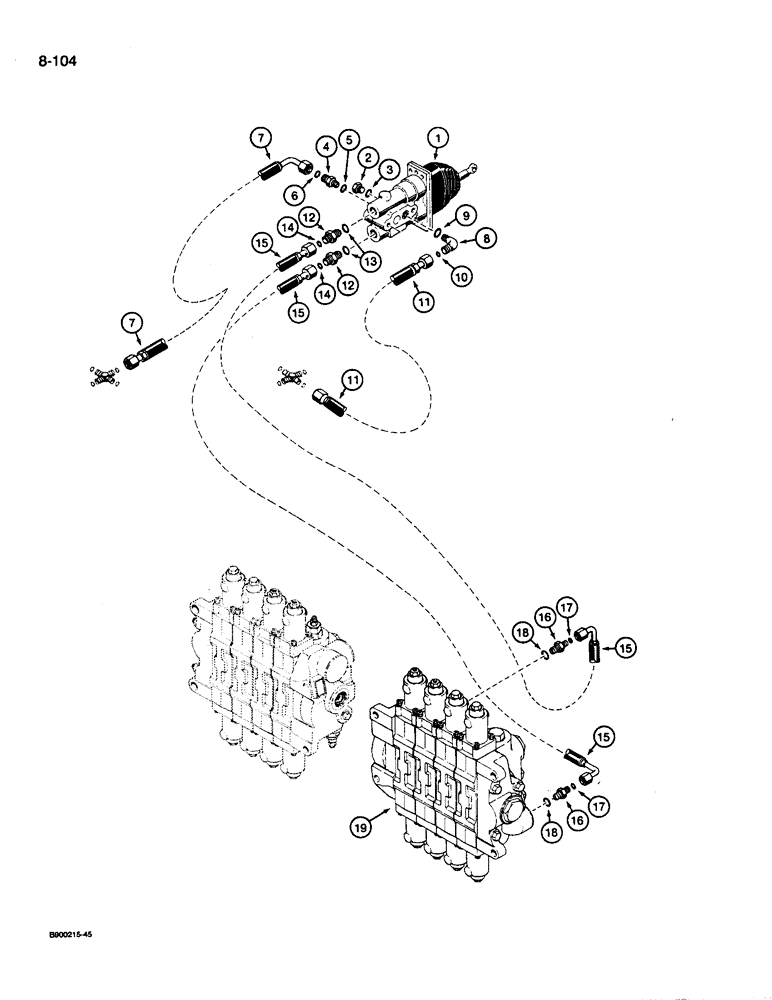

Запчасти Case 1085C (8-104) - HYDRAULIC FOOT CONTROL CIRCUIT, LEFT-HAND FOOT CONTROL VALVE TO ARM AND SWING CONTROL VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
S517336
VALVE
ASSEMBLY - foot control, parts list Figure: 8-114
1шт.
2
76349
PLUG,9/16" - 18 ORB
Incl. Ref. 3 Hex Hd, 9/16"-18 ORB
1шт.
4
201-101
HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Adapter - straight, Incl Ref. 5 and 6 11/16"-16 ORFS x 9/16"-18 ORB
1шт.
6
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face seal end -012, 90 Duro, .364" ID x .070" Thk
1шт.
7
S243570
HOSE
- 1000 mm long, supply, from rear port on left-hand side of foot control valve to cross under cab floor plate
1шт.
8
201-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
- 90 degree adj, 11/16-16 face x 9/16-18 inch O-ring, Includes: Ref. 9 and 10
1шт.
10
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face seal -012, 90 Duro, .364" ID x .070" Thk
1шт.
11
S243481
HOSE
- 750 mm long, return, from port on right-hand side of foot control valve to cross under cab floor plate
1шт.
12
201-111
HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB
ADAPTER - straight, 9/16-18 inch face seal x O-ring boss, Includes: Ref. 13 and 14
2шт.
14
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face seal end -011, 90 Duro, .301" ID x .070" Thk
1шт.
15
S243443
HOSE
- 3500 mm long, from rear ports on foot control valve to arm and swing control valve
2шт.
16
201-111
HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB
ADAPTER - straight, 9/16-18 inch face seal x O-ring boss, Includes: Ref. 17 and 18
2шт.
17
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face seal end -011, 90 Duro, .301" ID x .070" Thk
1шт.
19
1978152C1
DISTRIBUTOR
VALVE ASSEMBLY - control, arm and swing, parts list Figure: 8-016
1шт.
3
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
5
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Boss end
1шт.
9
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Boss end
1шт.
13
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Boss end
1шт.
18
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Boss end
1шт.
Выбрано товаров: 19
