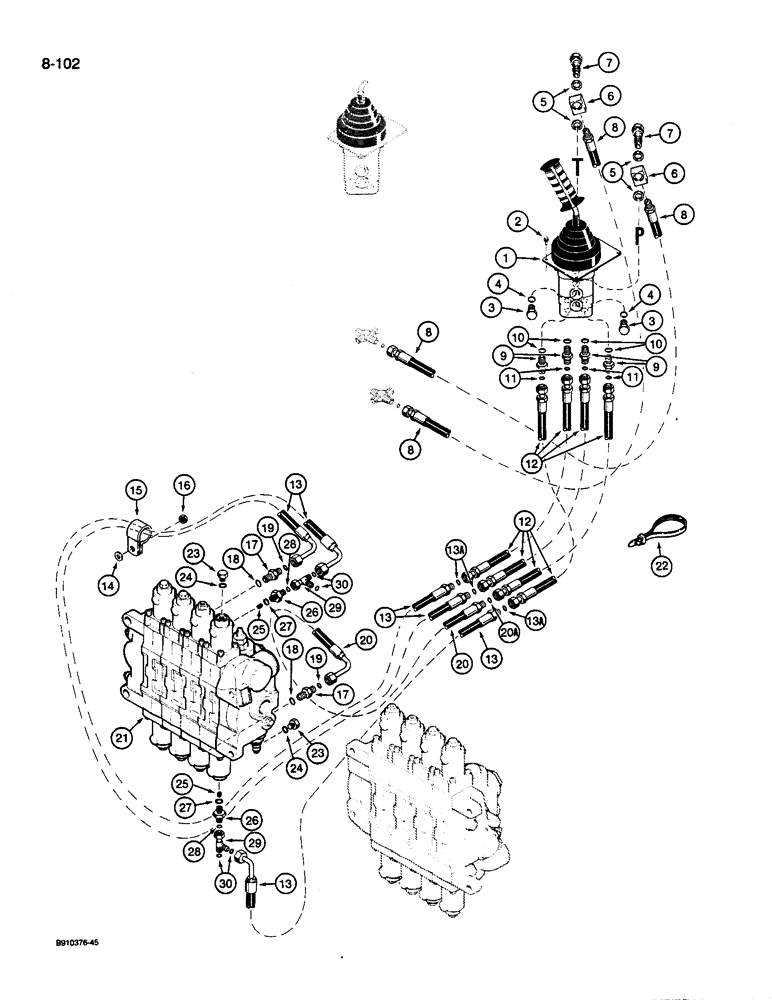

Запчасти Case 1085C (8-102) - HYDRAULIC HAND CONTROL CIRCUIT, RIGHT-HAND HAND CONTROL VALVE TO BOOM AND TOOL CONTROL VALVE (08) - HYDRAULICS

1

S517338

VALVE

ASSEMBLY - hand control, right-hand, parts list Figure: 8-112

1шт.

2

163-39

SCREW,Hex Wshr Hd, #10 - 24 x 3/4", Gr 5

- machine, hex washer head, No. 10 NC x 3/4 inch

4шт.

3

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 4 Hex Hd, 9/16"-18 ORB

2шт.

5

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- copper, inverted flare fitting

4шт.

6

A18531

FITTING

- special, inverted flare

2шт.

7

S243382

BOLT

BOLT - special, fitting

2шт.

8

S243484

HOSE

- 1150 mm long, from side ports on hand control valve to crosses under the cab floor plate

2шт.

9

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ADAPTER - straight, 9/16-18 inch face seal x O-ring boss, Includes: Ref. 10 and 11

4шт.

11

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

12

S243448

HOSE

- 1100 mm long, from ports on bottom of hand control valve to hoses to upper and lower ports of boom and tool control valve sections, Includes: Ref. 13A

4шт.

13

S243440

HOSE

- 2300 mm long, from hand control valve hoses to upper ports of boom and tool sections and lower port of boom section, Includes: Ref. 13A

3шт.

13a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

14

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

15

D34033

CLAMP

- hose

1шт.

16

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

1шт.

17

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ADAPTER - straight, 9/16-18 inch face seal x O-ring boss, Includes: Ref. 18 and 19

2шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

20

S243451

HOSE

- 1650 mm long, from hand control valve hose to lower port of tool section, Includes: Ref. 20A

1шт.

20a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

1978153C1

DISTRIBUTOR

VALVE ASSEMBLY - control, boom and tool, parts list Figure: 8-018

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 24 Hex Hd, 9/16"-18 ORB

2шт.

25

S243704

ORIFICE

SCREW - set, orifice

2шт.

26

S243703

CONNECTOR, ELEC

ADAPTER - special, straight, 9/16-18 inch face seal x O-ring, Includes: Ref. 27 and 28

2шт.

28

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face seal end -011, 90 Duro, .301" ID x .070" Thk

1шт.

29

201-421

TEE,9/16"-18 ORFS x 9/16"-18 Sw Run

9/16-18 inch face seal branch x face x swivel face, Includes: Ref. 30

2шт.

See Figure 8-110 for continuation of circuit from tee to high speed valve.

1шт.

30

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
