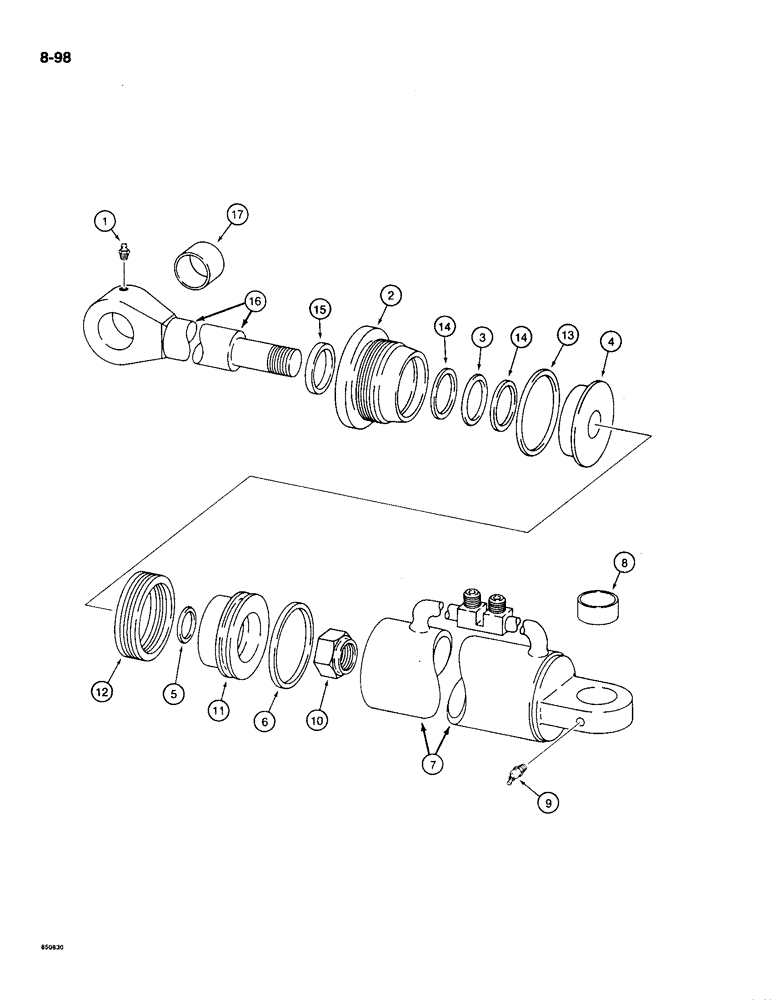

Запчасти Case 1085C (8-098) - 4-IN-1 BUCKET CYLINDER (08) - HYDRAULICS

S31431

CYLINDER

ASSEMBLY - 2-3/4 ID x 10-1/2 inch stroke, 4-in-1 bucket, Includes: Ref. 1 - 17

2шт.

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

2

S46823

HEAD

GLAND - cylinder

1шт.

3

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- piston rod seal

1шт.

4

S60194

PISTON

- split, rod end half

1шт.

5

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- 1 ID x 1-1/4 inch wide

1шт.

6

S48034

RING

- wear, piston

1шт.

S26750

TUBE ASSY.,17, 3.4" L

TUBE ASSEMBLY - cylinder, Includes: Ref. 8 and 9

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

8

S47225

BUSHING

- tube

1шт.

9

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 65 degree, 1/4-28 taper x 3/4 inch

1шт.

10

131-820

NUT - hex, self-locking, 1 inch NF

1шт.

11

S60192

PISTON

- split, nut end half

1шт.

12

S242849

BEARING

PACKING - piston

1шт.

13

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

14

S6921

WASHER

- leather

2шт.

15

S46869

RING

WIPER - piston rod, outer

1шт.

S26749

PISTON ROD

ROD ASSEMBLY - piston, cylinder, 1-1/2 inch diameter, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

ROD - piston, cylinder

1шт.

17

S46820

BUSHING

- piston rod

1шт.
