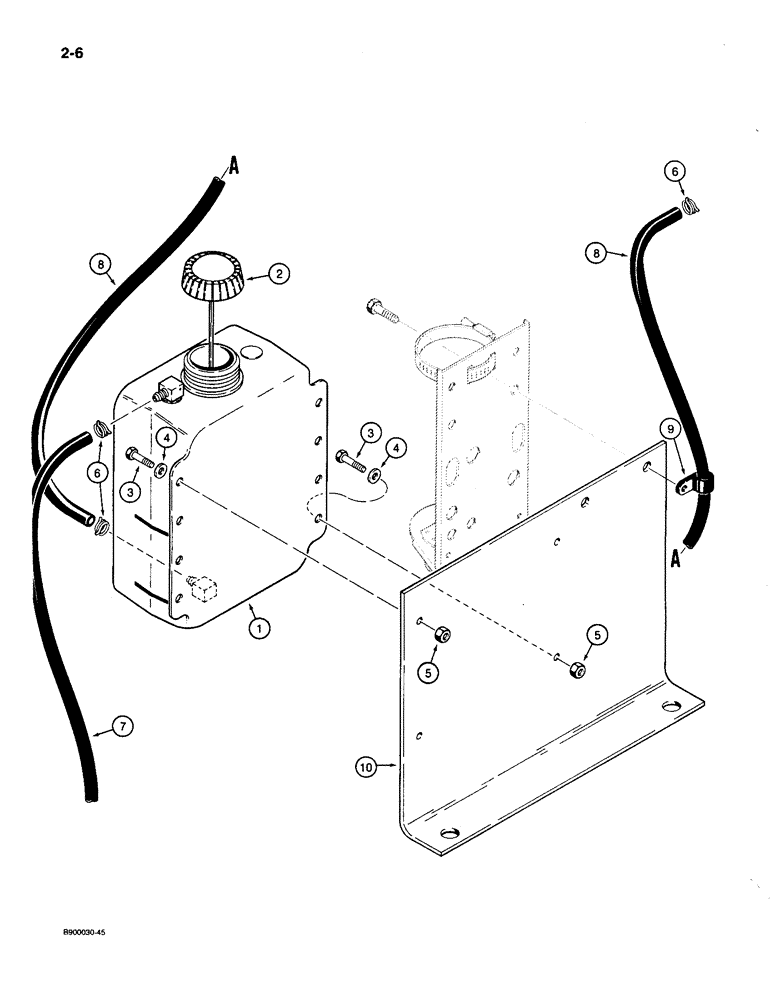

Запчасти Case 1085C (2-06) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

A184374

RESERVOIR

BOTTLE - coolant recovery

1шт.

2

A184079

CAP

- recovery bottle

1шт.

3

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

4

496-41034

WASHER,.344" x 1" x .098", HDN

4шт.

5

86625061

NUT,1/4"-20, GB

NUT - hex self-locking, 1/4 inch NC

4шт.

6

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

3шт.

7

A171019

HOSE,7.5mm ID x 900mm L, SAE 30R6

- Coolant overflow, Cut from L126767 bulk hose, See below 7.50 mm ID, 8.30 mm ID x 900.00 mm, SAE J30

1шт.

8

L115506

HOSE,7.9 mm ID x 1219.00 mm, SAE 30R1

Coolant Recovery 7.9 mm ID x 1219.00 mm, SAE 30R1

1шт.

9

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- coolant recovery hose

1шт.

10

S243566

BRACKET

- mounting

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.
