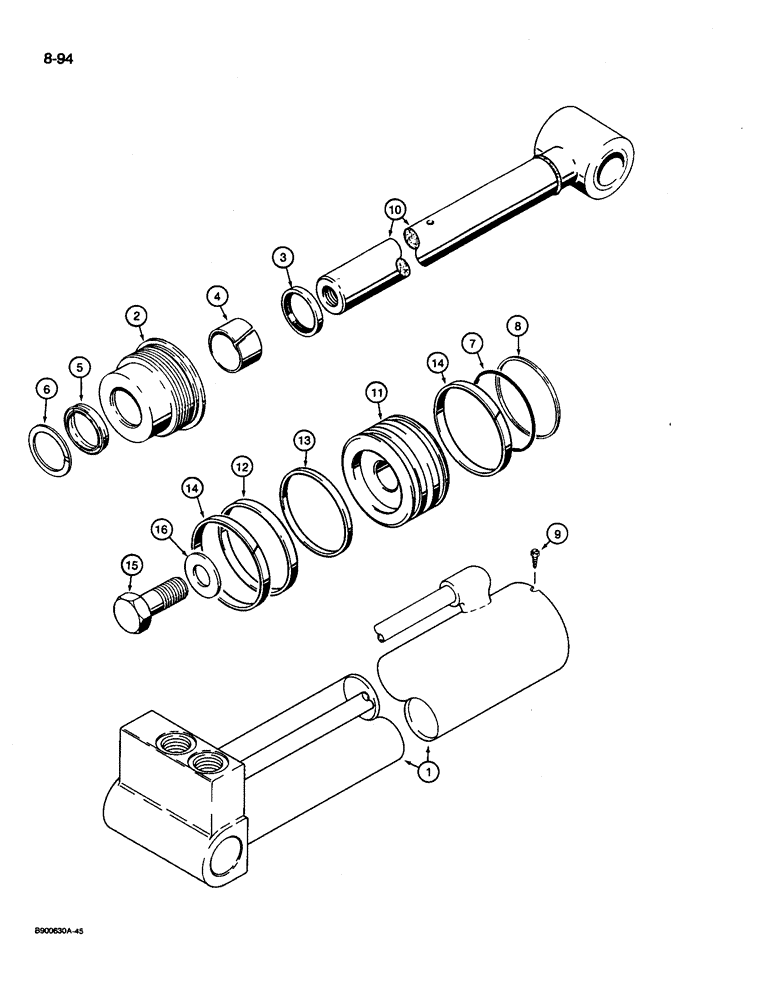

Запчасти Case 1085C (8-094) - EXTENDAHOE DIPPER CYLINDER (08) - HYDRAULICS

1978074C2

CYLINDER

ASSEMBLY - 51 ID x 1524 mm stroke, extendahoe, Includes: Ref. 1 - 16

1шт.

1

1978075C2

BARREL

TUBE - cylinder

1шт.

G109900

GLAND

ASSEMBLY - cylinder, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N G110054

1шт.

4

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit P/N G110054

1шт.

5

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit P/N G110054

1шт.

6

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer, grooved, piston, rod, narrow

1шт.

Part of Seal Kit P/N G110054

1шт.

7

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

- 3-5/8 ID x 1/8 inch wide

1шт.

Part of Seal Kit P/N G110054

1шт.

8

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

1шт.

Part of Seal Kit P/N G110054

1шт.

9

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex, self-tapping, No. 8 NC x 3/8 "

1шт.

10

1978078C1

ROD ASSY.

ROD - piston, 2 inch (51 mm) diameter

1шт.

11

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

- cylinder

1шт.

12

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G110054

1шт.

13

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup, piston seal

1шт.

Part of Seal Kit P/N G110054

1шт.

14

G100448

RING,101.6mm OD, Ext

- wear, piston

2шт.

Part of Seal Kit P/N G110054

1шт.

15

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

16

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, 1-1/4 inch, hardened

1шт.

G110054

KIT

- seal, Includes: Ref. 3 - 8, 12 - 14

1шт.
