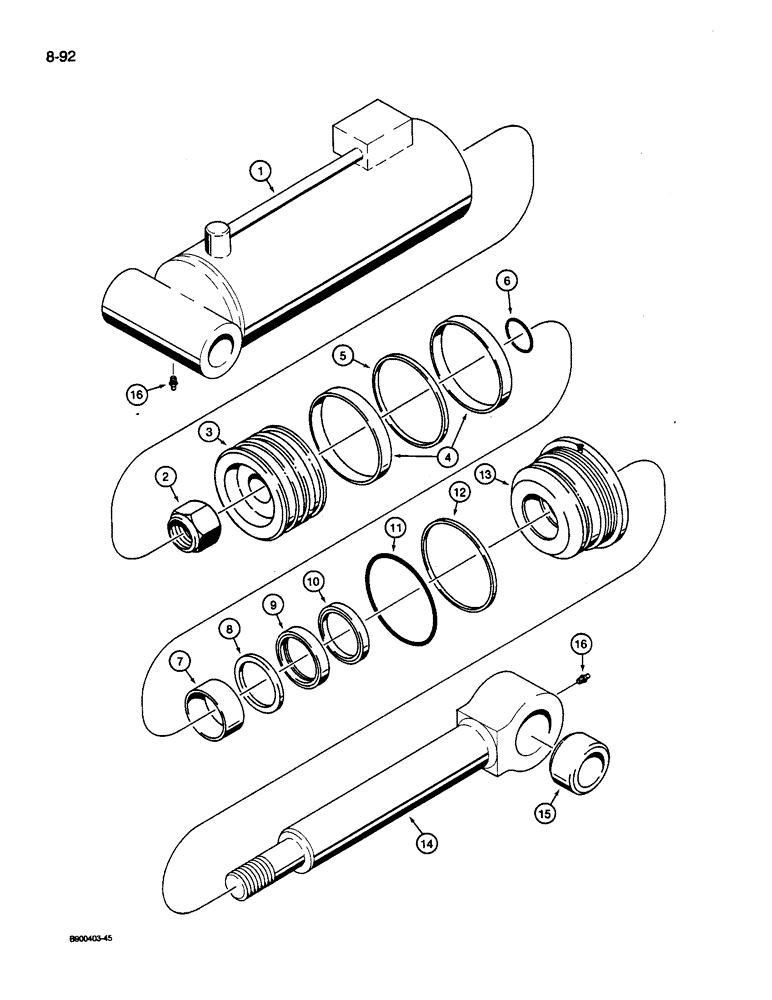

Запчасти Case 1085C (8-092) - WRIST-O-TWIST CYLINDER (08) - HYDRAULICS

S619488

CYLINDER

ASSEMBLY - Wrist-O-Twist, 102 ID x 191 mm stroke, Wrist-O-Twist, Includes: Ref. 1 - 16

1шт.

1

S517638

CYLINDER

TUBE - cylinder

1шт.

2

131-490

LOCK NUT,1 1/4"-12

NUT - hex, self-locking, 1-1/4 inch NF

1шт.

3

S516773

PISTON

- cylinder

1шт.

4

S120057

RING

- wear, piston

2шт.

5

S120045

SEAL

- piston

1шт.

6

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

7

S120058

BEARING LINER

BUSHING - gland

1шт.

8

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

9

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup

1шт.

10

S40025

WIPER SEAL

WIPER - piston rod, outer

1шт.

11

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

- 3-5/8 ID x 1/8 inch wide

1шт.

12

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

13

S516774

GLAND

- cylinder

1шт.

14

S243459

ROD

ASSEMBLY - piston, 51 mm diameter, Includes: Ref. 15

1шт.

15

S243462

BUSHING

- piston rod

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.
