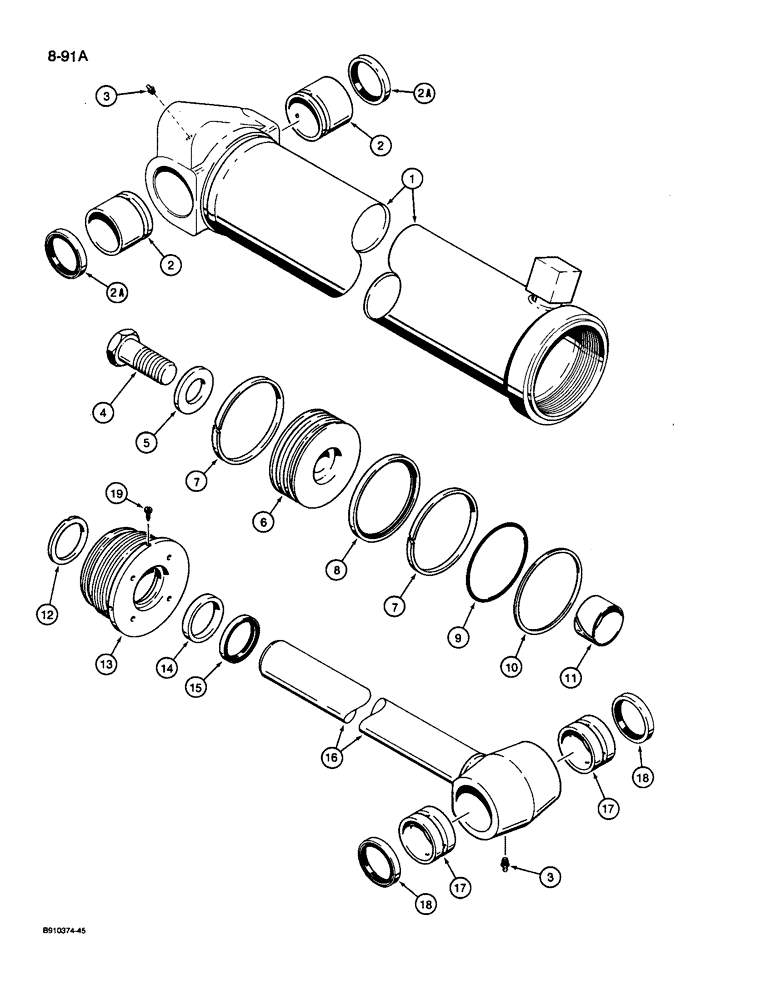

Запчасти Case 1085C (8-091A) - TOOL CYLINDER, REQUIRES SEPARATE HYDRAULIC TUBE TO ROD END OF CYLINDER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1986871C1
CYLINDER ASSY.
CYLINDER ASSEMBLY - 140 ID x 953 mm stroke, tool, if used, Includes: Ref. 1 - 19
1шт.
1986870C1
HYD TUBE,139.65 mm OD
TUBE ASSEMBLY - cylinder, Includes: Ref. 1 - 2A
1шт.
1
NSS
NOT SOLD SEPARAT
TUBE - cylinder
1шт.
2
S229548
BUSHING
- tube
2шт.
2a
S243186
SEAL
- grease, bushing
2шт.
3
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 PT x 21/32 inch
2шт.
4
28-2456
BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8
- hex, 1-1/2 NF x 3-1/2 inch, grade 8
1шт.
5
G104990
WASHER
- flat, 1-1/2 inch, hardened
1шт.
6
G105019
PISTON
- cylinder
1шт.
7
S110890
SEAL
RING - wear, piston
2шт.
Part of Seal Kit P/N 1980384C1
1шт.
8
S228606
SEAL
SEAL - piston
1шт.
Part of Seal Kit P/N 1980384C1
1шт.
1980263C1
GLAND
ASSEMBLY - cylinder, Includes: Ref. 9 - 15
1шт.
9
238-5251
O-RING,0.139" Thk x 5.109" ID, -251, Cl 5, 75 Duro
Gland -251, 70 Duro, 5.109" ID x .139" Thk
1шт.
Part of Seal Kit P/N 1980384C1
1шт.
10
G107971
RING
- backup, gland O-ring
1шт.
Part of Seal Kit P/N 1980384C1
1шт.
11
G102427
BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L
- gland
1шт.
Part of Seal Kit P/N 1980384C1
1шт.
12
G107998
SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk
- piston rod, narrow
1шт.
Part of Seal Kit P/N 1980384C1
1шт.
13
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
14
G109052
SEAL
- U-cup
1шт.
Part of Seal Kit P/N 1980384C1
1шт.
15
D95146
WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk
WIPER - piston rod, outer
1шт.
Part of Seal Kit P/N 1980384C1
1шт.
1980292C1
ROD ASSY.
ROD ASSEMBLY - piston, cylinder, 64 mm diameter, Includes: Ref. 16 - 18
1шт.
16
NSS
NOT SOLD SEPARAT
ROD - piston
1шт.
17
S243185
BUSHING
- piston rod
2шт.
18
S243186
SEAL
- grease, bushing
2шт.
19
276-2446
SELF-TAP SCREW,Hex Hd, #8 x 3/8"
SCREW - hex, self-tapping, No. 8 NC x 3/8 "
1шт.
1980384C1
SEAL KIT
- seal, Includes: Ref. 7 - 12, 14, 15
1шт.
Выбрано товаров: 33
