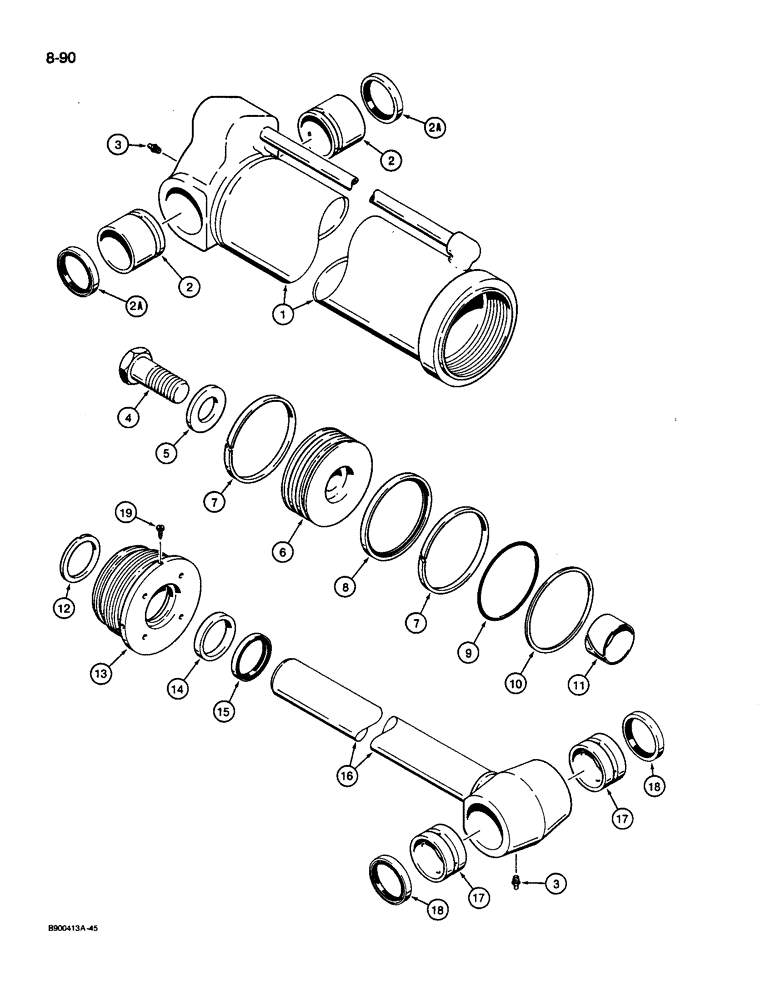

Запчасти Case 1085C (8-090) - TOOL CYLINDER, WITH INTEGRAL TUBE TO ROD END OF CYLINDER (08) - HYDRAULICS

1978243C2

CYLINDER

ASSEMBLY - 140 ID x 953 mm stroke, tool, if used, Includes: Ref. 1 - 19

1шт.

1980258C1

HYD TUBE,139.65 mm OD

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 - 2A

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

S229548

BUSHING

- tube

2шт.

2a

S243186

SEAL

- grease, bushing

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

4

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- hex, 1-1/2 NF x 3-1/2 inch, grade 8

1шт.

5

G104990

WASHER

- flat, 1-1/2 inch, hardened

1шт.

6

G105019

PISTON

- cylinder

1шт.

7

S110890

SEAL

RING - wear, piston

2шт.

Part of Seal Kit P/N 1980384C1

1шт.

8

S228606

SEAL

SEAL - piston

1шт.

Part of Seal Kit P/N 1980384C1

1шт.

1980263C1

GLAND

ASSEMBLY - cylinder, Includes: Ref. 9 - 15

1шт.

9

238-5251

O-RING,0.139" Thk x 5.109" ID, -251, Cl 5, 75 Duro

Gland -251, 70 Duro, 5.109" ID x .139" Thk

1шт.

Part of Seal Kit P/N 1980384C1

1шт.

10

G107971

RING

- backup, gland O-ring

1шт.

Part of Seal Kit P/N 1980384C1

1шт.

11

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- gland

1шт.

Part of Seal Kit P/N 1980384C1

1шт.

12

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

- piston rod, narrow

1шт.

Part of Seal Kit P/N 1980384C1

1шт.

13

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

14

G109052

SEAL

- U-cup

1шт.

Part of Seal Kit P/N 1980384C1

1шт.

15

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N 1980384C1

1шт.

1980292C1

ROD ASSY.

ROD ASSEMBLY - piston, cylinder, 64 mm diameter, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

17

S243185

BUSHING

- piston rod

2шт.

18

S243186

SEAL

- grease, bushing

2шт.

19

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex, self-tapping, No. NC x 3/8 "

1шт.

1980384C1

SEAL KIT

- seal, Includes: Ref. 7 - 12, 14, 15

1шт.
