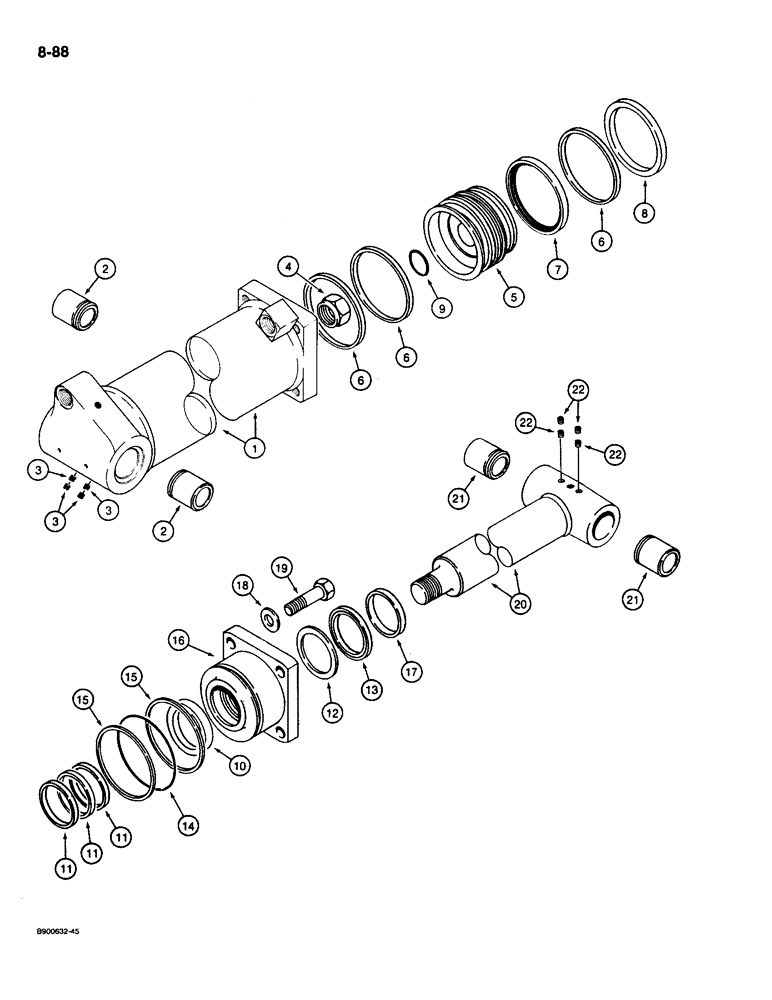

Запчасти Case 1085C (8-088) - BOOM CYLINDER (08) - HYDRAULICS

S957011

CYLINDER

ASSEMBLY - 6-1/2 x 55-11/32 inch stroke boom, Includes: Ref. 1 - 22

1шт.

S619265

CYLINDER,6.53" ID x 64.41, 7.5" L

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

S229548

BUSHING

- tube

2шт.

3

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex socket, 5/16 NC x 3/8 inch, cup point

4шт.

4

S83249

NUT

- hex, self-locking, special

1шт.

5

S516913

PISTON

- cylinder

1шт.

6

S97856

RING

- wear, piston

3шт.

7

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL - piston

1шт.

8

S120521

OIL SEAL

RING - piston

1шт.

9

610414C1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- piston

1шт.

10

S97798

SPACER

- piston

1шт.

11

S104133

OIL SEAL

RING - wear, gland

3шт.

12

G109030

SEAL,88.32mm ID x 104.44mm OD x 4.9mm Thk

- piston rod, narrow

1шт.

13

S118038

SEAL

- U-cup

1шт.

14

S6030

O-RING,5.975" ID x 6.525" OD x 0.275"

- gland

1шт.

15

S99881

WASHER

RING - backup

2шт.

16

S619031

GLAND

- cylinder

1шт.

17

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

18

96-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 9/64 inch, hardened

4шт.

19

28-1444

BOLT,Hex, 7/8" - 14 x 2-3/4", Gr 8

- hex, 7/8 NF x 2-3/4 inch, grade 8

4шт.

S517376

ROD

ASSEMBLY - piston, 3-1/2 inch diameter, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

ROD - piston, cylinder

1шт.

21

S229548

BUSHING

- piston rod

2шт.

22

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex socket, 5/16 NC x 3/8 inch, cup point

4шт.
