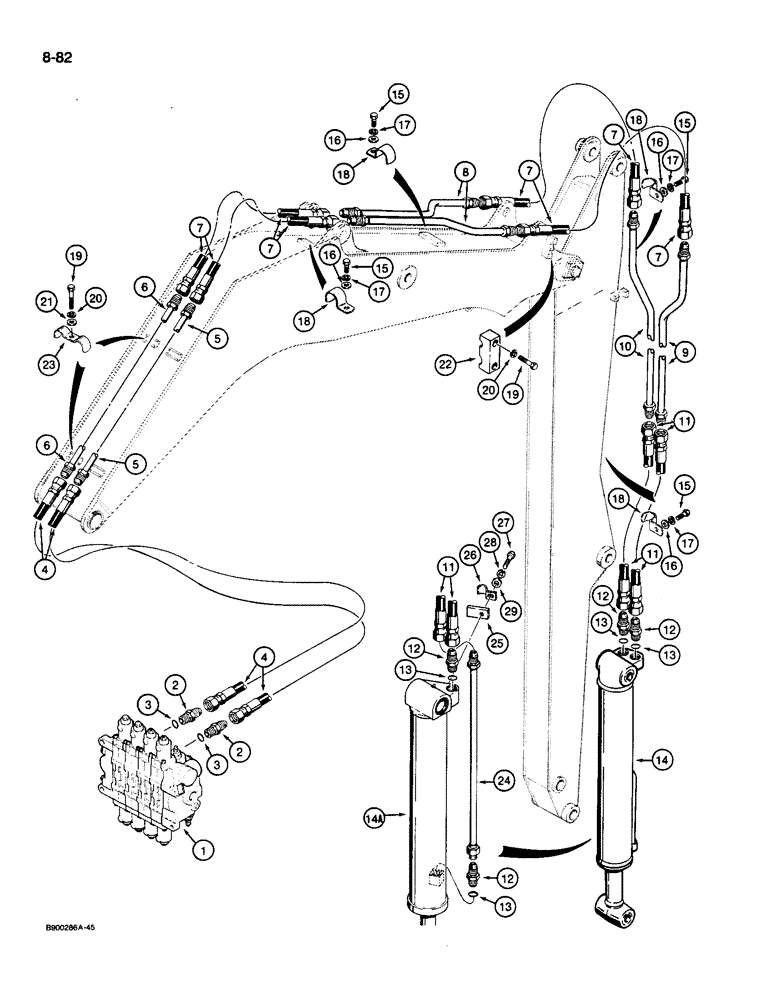

Запчасти Case 1085C (8-082) - TOOL CYLINDER HYDRAULIC CIRCUIT, MODELS WITH RIGID ARM (08) - HYDRAULICS

1

1978153C1

DISTRIBUTOR

VALVE ASSEMBLY - control, boom and tool, parts list Figure: 8-018

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

4

S243683

HOSE

- 980 mm long, at control valve

2шт.

5

S224607

TUBE ASSY.,41" L

TUBE - from hose at control valve to closed end of tool cylinder

1шт.

6

S243517

TUBE ASSY.

TUBE - from hose at control valve to rod end of tool cylinder

1шт.

7

S235936

HOSE

- 49 inch long, intermediate

4шт.

8

S517483

TUBE

- intermediate

2шт.

9

S517803

TUBE ASSY.

TUBE - to hose at closed end of tool cylinder

1шт.

10

S517802

TUBE ASSY.

TUBE - to hose at rod end of tool cylinder

1шт.

11

S8628

HOSE

- 36 inch long, at tool cylinder

2шт.

12

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 13

2шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

14

1978243C2

CYLINDER

ASSEMBLY - tool, with integral tube to rod end, parts list Figure: 8-090, if used

1шт.

14a

1986871C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - tool, parts list Figure: 8-91A, requires separate tube to rod end of cylinder, if used

1шт.

15

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

16

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

8шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

18

S120173

CLAMP

- tubes to boom and arm

8шт.

19

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

10шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

10шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

22

S243610

CLAMP

- hoses to boom and arm

4шт.

23

S79656

CLAMP

-, Serial Range: tubes-arm

2шт.

24

S243825

TUBE ASSY.

TUBE - to rod end of tool cylinder, used with 1986871C1 cylinder (item 14A) only

1шт.

25

S120957

BLOCK

- clamp mounting, used with item 24 tube only

1шт.

26

S82847

CLAMP

- tube to cylinder, used with item 24 tube only

1шт.

27

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Used with item 24 tube only Hex, 1/2"-13 x 1 3/4", G5

1шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used with item 24 tube only 1/2"

1шт.

29

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Used with item 24 tube only 1/2", SAE

1шт.
