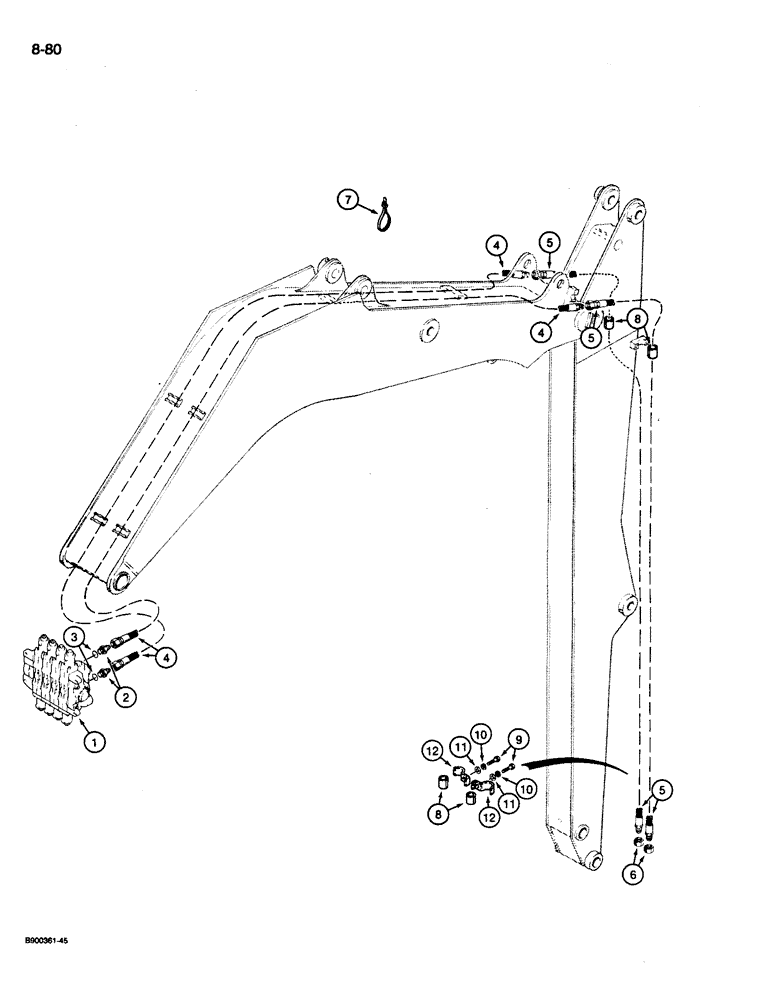

Запчасти Case 1085C (8-080) - AUXILIARY HYDRAULIC CIRCUIT, USED ON MODELS WITH RIGID EXCAVATOR ARM (08) - HYDRAULICS

1

1978153C1

DISTRIBUTOR

VALVE ASSEMBLY - control, boom and tool, parts list Figure: 8-018

1шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-5/16-12 inch O-ring, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

4

S121016

HOSE ASSY.

HOSE - 5842 mm long, at control valve

2шт.

5

S121015

HOSE ASSY.

HOSE - 4166 mm long, at arm to tool option

2шт.

6

218-755

CAP,37 Degree, 3/4"-16

If used 37º, 3/4"-16

2шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

S75792

RING

- protector, hose

4шт.

9

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

- hex, 1/2 NC x 1-1/8 inch

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

12

S116280

CLAMP

-hose

2шт.
