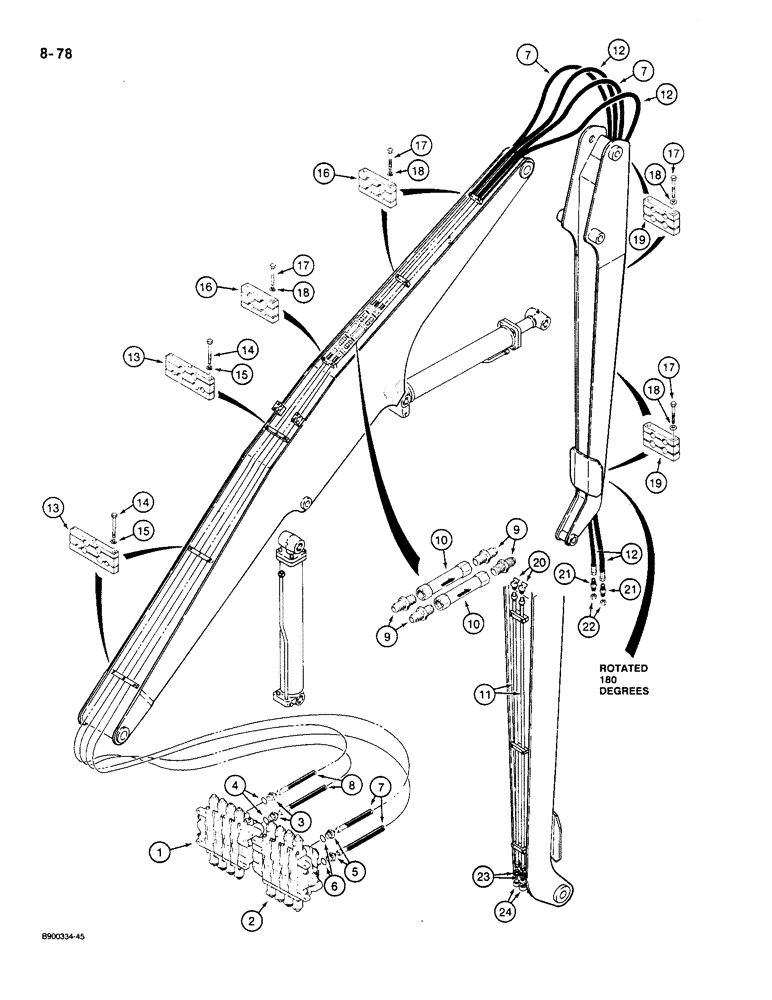

Запчасти Case 1085C (8-078) - AUXILARY HYDRAULICS, MODELS WITH MATERIAL HANDLING BOOM AND ARM (08) - HYDRAULICS

1

1978153C1

DISTRIBUTOR

VALVE ASSEMBLY - control, boom and tool, parts list Figure: 8-018

1шт.

2

1978152C1

DISTRIBUTOR

VALVE ASSEMBLY - control, arm and swing, parts list Figure: 8-016

1шт.

3

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-5/16-12 inch O-ring, Includes: Ref. 3

2шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

5

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring, Incl. Ref. 6

2шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

7

S75824

HOSE ASSY.

HOSE - 8534 mm long, at arm and swing control valve

2шт.

8

S121096

HOSE

- 4648 mm long, at boom and tool control valve

2шт.

9

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT

4шт.

10

S513782

VALVE, CONTROL

VALVE - flow control

2шт.

11

S242827

TUBE ASSY.,1" OD x 126" L

TUBE - to tool option

2шт.

12

S75758

HOSE

- 6248 mm long, to tool option

2шт.

13

S242747

CLAMP

- hose, three bolt hole, at boom

3шт.

14

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

9шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

9шт.

16

S242836

CLAMP

- hose, two bolt hole, at boom

3шт.

17

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

14шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

14шт.

19

S242835

CLAMP

- hose, at arm

4шт.

20

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 deg, 1-1/16-12 inch flare x swivel str thread

2шт.

21

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, 3/4-16 inch flare

2шт.

22

218-755

CAP,37 Degree, 3/4"-16

If used 37º, 3/4"-16

2шт.

23

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

ADAPTER - reducing, 1-1/16-12 str thread x 7/8-14 inch flare

2шт.

24

218-756

CAP,37 Degree, 7/8"-14

If used 37º, 7/8"-14

2шт.
