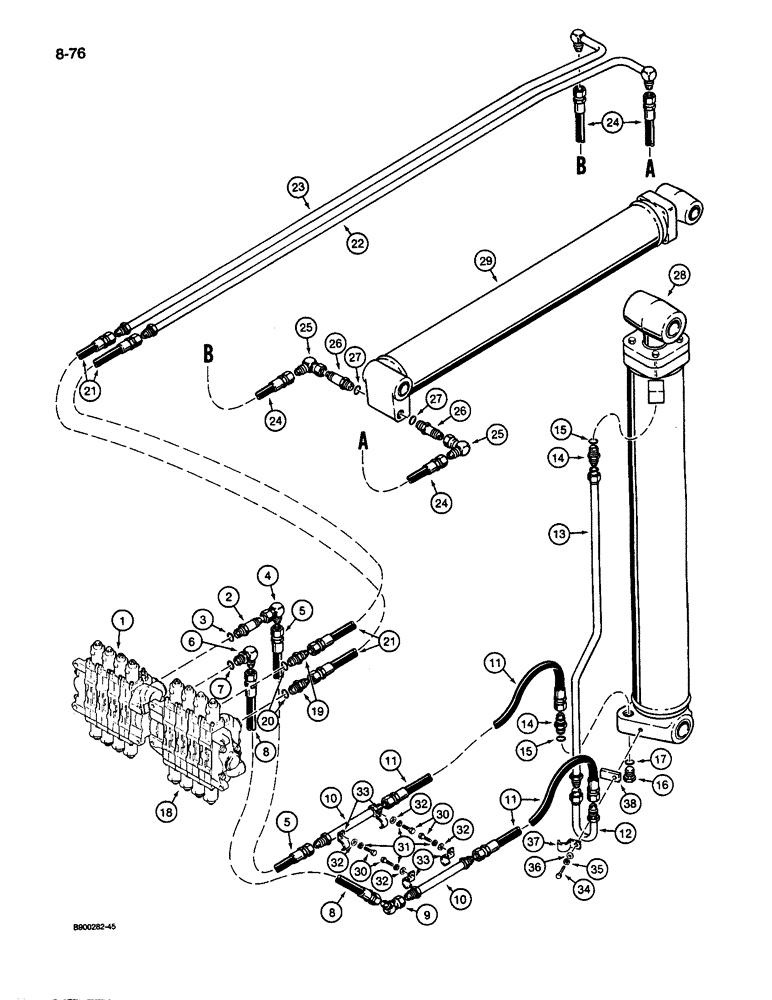

Запчасти Case 1085C (8-076) - BOOM AND ARM HYDRAULIC CIRCUIT, MODELS WITH MATERIAL HANDLING BOOM AND ARM (08) - HYDRAULICS

1

1978153C1

DISTRIBUTOR

VALVE ASSEMBLY - control, boom and tool, parts list Figure: 8-018

1шт.

2

218-5034

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/16-12 inch flare x O-ring boss, Includes: Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

4

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare

1шт.

5

S72041

HOSE

- 28 inch long, at control valve to closed end of boom cylinder

1шт.

6

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

8

S401536

HOSE

- 30 inch, at control valve to rod end of boom cylinder

1шт.

9

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 deg, 1-5/16-12 inch flare x swivel str thread

1шт.

10

S243252

TUBE ASSY.

TUBE - intermediate, to boom cylinder

2шт.

11

S235936

HOSE

- 49 inch long, to closed and rod end of boom cylinder

2шт.

12

S243772

TUBE ASSY.

TUBE - intermediate hose to tube at rod end of boom cylinder

1шт.

13

S243773

TUBE ASSY.

TUBE - at rod end of boom cylinder

1шт.

14

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 15

2шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

16

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 17 Hex Hd, 1 5/16"-12 ORB

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

18

1978152C1

DISTRIBUTOR

VALVE ASSEMBLY - control, arm and swing, parts list Figure: 8-016

1шт.

19

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 20

2шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

21

S243683

HOSE

- 980 mm long, at control valve to arm cylinder

2шт.

22

S517878

TUBE ASSY.

TUBE - to closed end of arm cylinder

1шт.

23

S517880

TUBE ASSY.

TUBE - to rod end of arm cylinder

1шт.

24

S8628

HOSE

- 36 inch long, at arm cylinder

2шт.

25

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare

2шт.

26

218-5034

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/16-12 inch flare x O-ring boss, Includes: Ref. 27

2шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

28

S957011

CYLINDER

ASSEMBLY - boom, parts list Figure: 8-088

1шт.

29

S956920

CYLINDER

ASSEMBLY - arm, parts list Figure: 8-086

1шт.

30

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

32

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

33

S77469

CLAMP

- tube

4шт.

34

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

35

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

36

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

37

S82847

CLAMP

- tube

1шт.

38

S120957

BLOCK

- clamp mounting

1шт.
