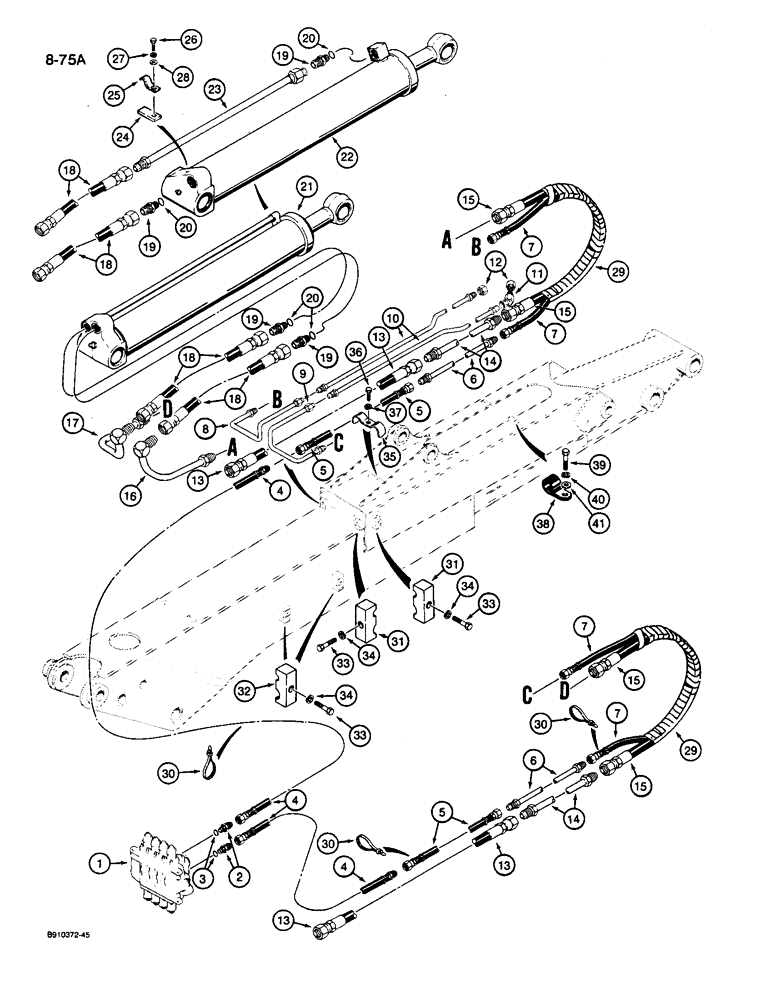

Запчасти Case 1085C (8-075A) - EXTENDAHOE ARM HYDRAULIC CIRCUIT, BOOM AND TOOL CONTROL VALVE TO TOOL CYLINDER AND TOOL OPTION (08) - HYDRAULICS

1

1978153C1

DISTRIBUTOR

VALVE ASSEMBLY - control, boom and tool, parts list Figure: 8-018

1шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-5/16-12 inch O-ring, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

4

S121016

HOSE ASSY.

HOSE - 5842 mm long, at boom and tool control valve

2шт.

5

S11229

HOSE ASSY.

HOSE - 49 inch long, intermediate, control valve to tool option

2шт.

6

S243547

TUBE

- intermediate, to tool option

2шт.

7

S11231

HOSE ASSY.

HOSE - 68 inch long, intermediate, control valve to tool option

2шт.

8

S517698

TUBE

- intermediate, left-hand, to tube at tool option

1шт.

9

S517697

TUBE

- intermediate, right-hand, to tube at tool option

1шт.

10

S517701

TUBE

- at tool option

2шт.

11

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 deg, 3/4-16 inch flare x swivel straight thread

1шт.

12

218-755

CAP,37 Degree, 3/4"-16

If used 37º, 3/4"-16

2шт.

13

S235936

HOSE

- 49 inch long, intermediate, to tool cylinder

2шт.

14

S243546

TUBE

- intermediate, to tool cylinder

2шт.

15

S401534

HOSE ASSY.

HOSE - 66 inch long, intermediate, to tool cylinder

2шт.

16

S517700

TUBE

- to hose at tool cylinder, right-hand

1шт.

17

S517699

TUBE

- to hose at tool cylinder, left-hand

1шт.

18

S243587

HOSE

- 23 inch long, at tool cylinder

2шт.

19

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 20

2шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

21

1978243C2

CYLINDER

ASSEMBLY - tool, with integral tube to rod end, parts list Figure: 8-090, if used

1шт.

22

1986871C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - tool, parts list Figure: 8-90, requires separate tube to rod end of cylinder, if used

1шт.

23

S243825

TUBE ASSY.

TUBE - to rod end of tool cylinder, used with 1986871C1 cylinder (item 22) only

1шт.

24

S120957

BLOCK

- clamp mounting, used with item 23 tube only

1шт.

25

S82847

CLAMP

- tube to cylinder, used with item 23 tube only

1шт.

26

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Used with item 23 tube only Hex, 1/2"-13 x 1 3/4", G5

1шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used with item 23 tube only 1/2"

1шт.

28

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Used with item 23 tube only 1/2", SAE

1шт.

29

S120577

COVER

GUARD - hose

2шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

31

S243725

BRACKET

- clamp

4шт.

32

S243543

CLAMP

BRACKET - clamp

4шт.

33

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

35

S83619

CLAMP

- hose

1шт.

36

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

38

49836

CLAMP

- tube

2шт.

39

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

40

492-11038

LOCK WASHER,3/8"

2шт.

41

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.
