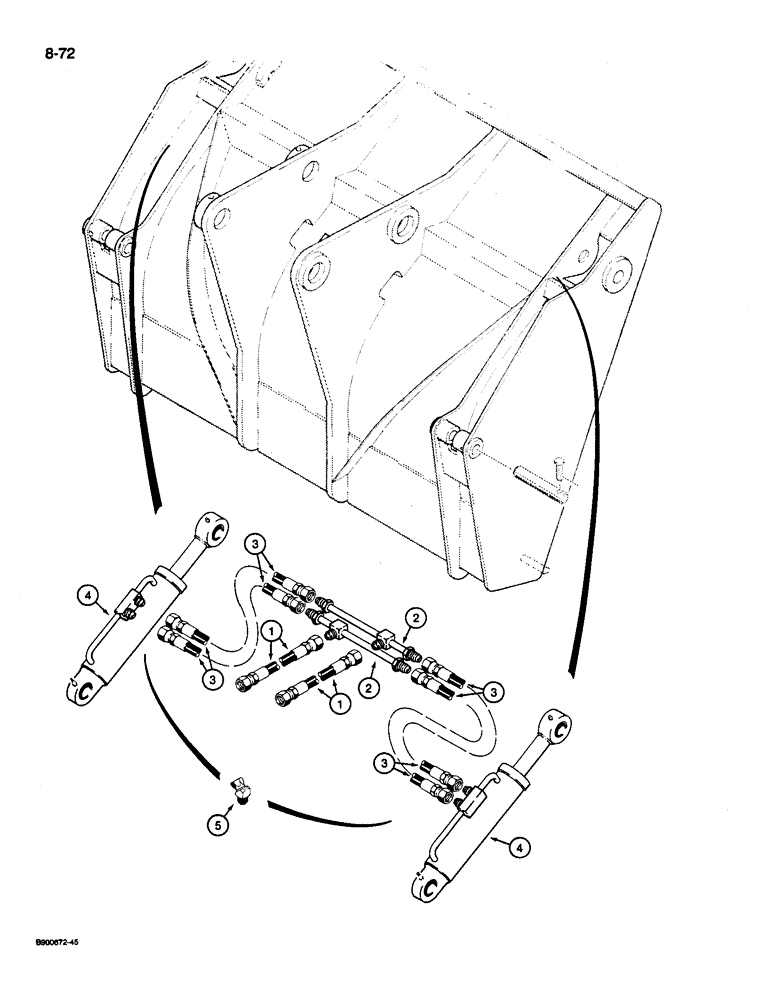

Запчасти Case 1085C (8-072) - 4-IN-1 BUCKET HYDRAULICS (08) - HYDRAULICS

1

S120966

HOSE

- 104 inch long, to intermediate tubes

2шт.

2

S207722

TUBE ASSY.,11.5" L

TUBE - intermediate, to hoses at cylinder

2шт.

3

S11226

HOSE

- 20 inch long, to bucket cylinders

4шт.

4

S31431

CYLINDER

ASSEMBLY - 4-in-1 bucket, parts list Figure: 8-098

2шт.

5

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 deg, 3/4-16 inch flare x swivel straight thread, used on models with extendahoe dipper only

1шт.
