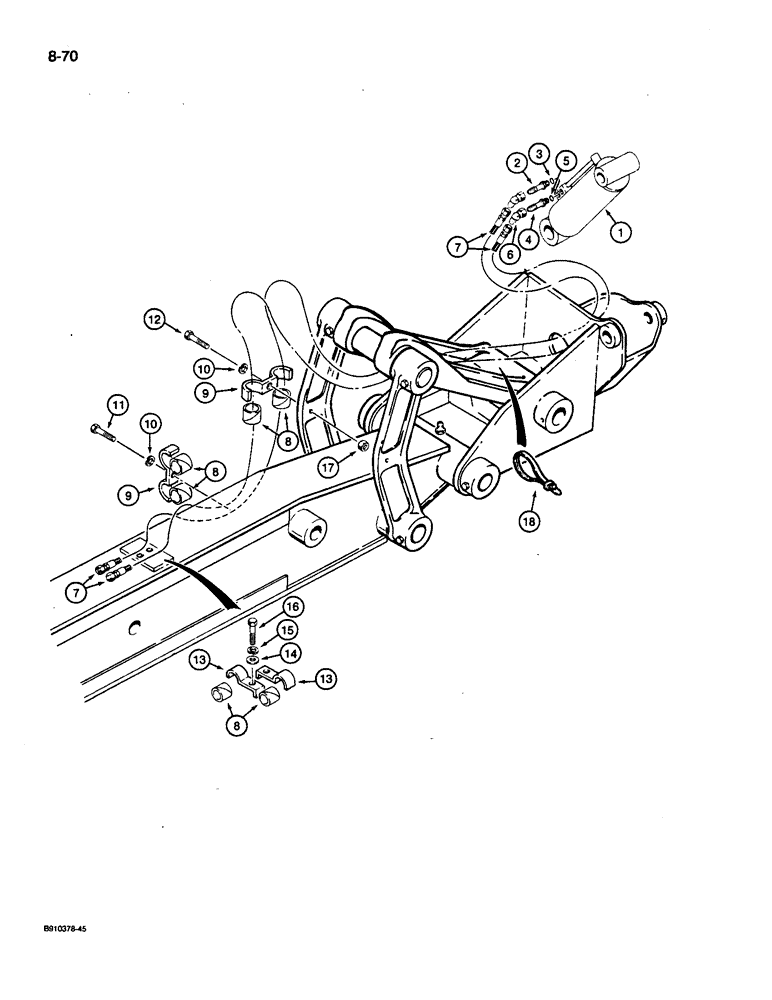

Запчасти Case 1085C (8-070) - WRIST-O-TWIST HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

S619488

CYLINDER

ASSEMBLY - Wrist-O-Twist, parts list Figure: 8-092

1шт.

2

S243563

FITTING

- special, at cylinder, Includes: Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5031

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree swivel, 3/4-16 inch flare x swivel

2шт.

7

S120966

HOSE

- 104 inch long, cylinder

2шт.

8

S75792

RING

- protector, hose

6шт.

9

S83619

CLAMP

- hose

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

12

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

13

S116280

CLAMP

- hose

2шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

17

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
