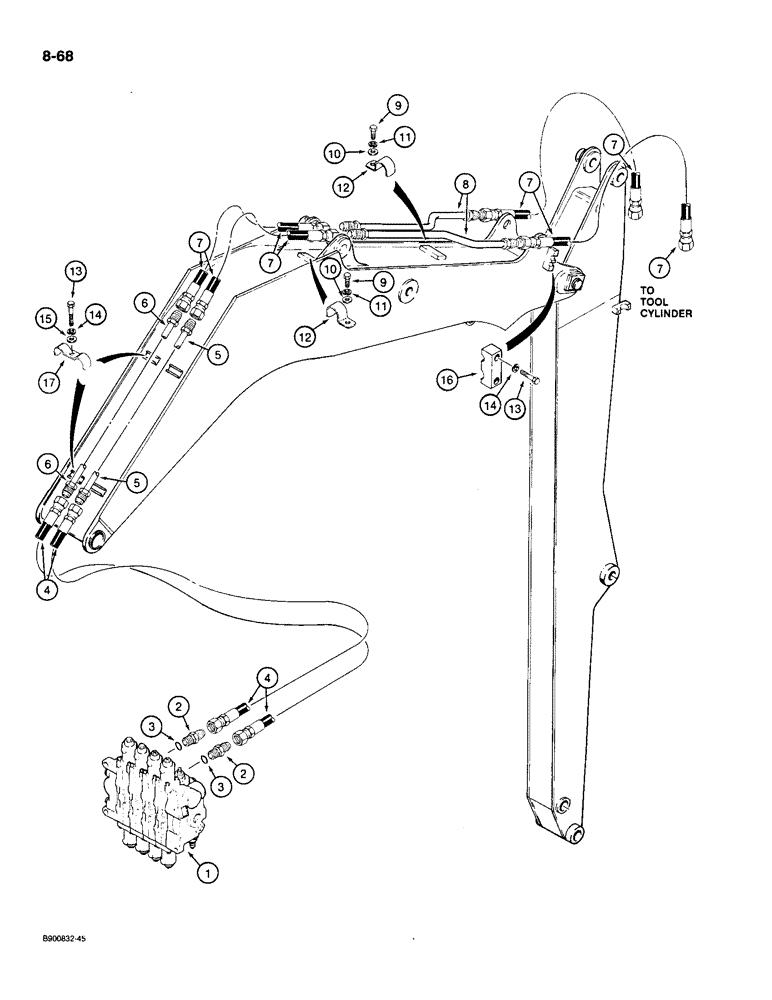

Запчасти Case 1085C (8-068) - TOOL CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

1978153C1

DISTRIBUTOR

VALVE ASSEMBLY - control, tool and boom, parts list Figure: 8-018

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

4

S243683

HOSE

- 980 mm long, at control valve

2шт.

5

S224607

TUBE ASSY.,41" L

TUBE - from hose at control valve to close end of tool cylinder

1шт.

6

S243517

TUBE ASSY.

TUBE - from hose at control valve to rod end of tool cylinder

1шт.

7

S235936

HOSE

- 49 inch long, intermediate

4шт.

8

S517483

TUBE

- intermediate

2шт.

9

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

10

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

6шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

12

S120173

CLAMP

-, Serial Range: tubes-arm

6шт.

13

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

10шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

10шт.

15

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

16

S243610

CLAMP

-, Serial Range: hoses-arm

4шт.

17

S79656

CLAMP

-, Serial Range: tubes-arm

2шт.
