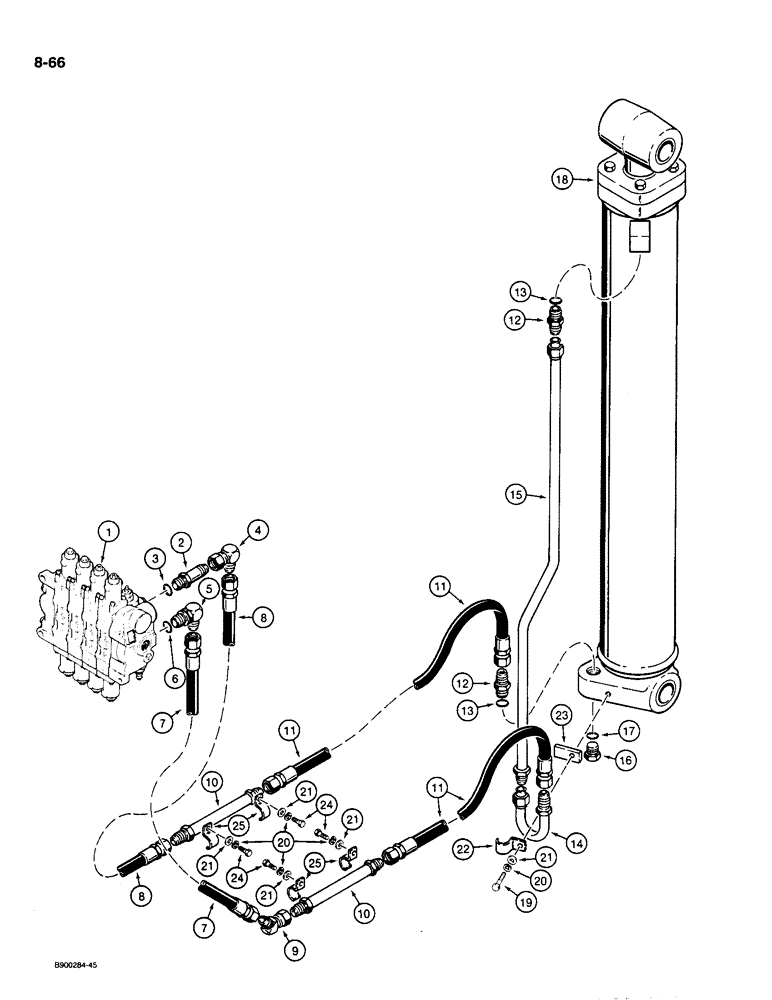

Запчасти Case 1085C (8-066) - BOOM CYLINDER HYDRAULIC CIRCUIT, MODELS WITH EXCAVATING BOOM WITH RIGID ARM (08) - HYDRAULICS

1

1978153C1

DISTRIBUTOR

VALVE ASSEMBLY - control, boom and tool, parts list Figure: 8-018

1шт.

2

218-5034

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/16-12 inch flare x O-ring boss, Includes: Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

4

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 deg swivel, 1-5/16-12 inch flare x fem flare swivel, Includes: Ref. 6

1шт.

5

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º adj, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

7

S401536

HOSE

- 30 inch long, at control valve to rod end of boom cylinder

1шт.

8

S72041

HOSE

- 28 inch long, at control valve to closed end of boom cylinder

1шт.

9

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree swivel, 1-5/16-12 inch flare x swivel

1шт.

10

S243252

TUBE ASSY.

TUBE - intermediate

2шт.

11

S235936

HOSE

- 49 inch long, intermediate

2шт.

12

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 13

2шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

14

S243250

TUBE ASSY.

TUBE - intermediate hose to tube at rod end of boom cylinder

1шт.

15

S243251

TUBE ASSY.

TUBE - at rod end of boom cylinder

1шт.

16

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 17 Hex Hd, 1 5/16"-12 ORB

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

18

S957011

CYLINDER

ASSEMBLY - boom, parts list Figure: 8-088

1шт.

19

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

5шт.

22

S82847

CLAMP

- tube, at boom cylinder

1шт.

23

S120957

BLOCK

- clamp mounting

1шт.

24

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

25

S120173

CLAMP

- intermediate tubes

4шт.
