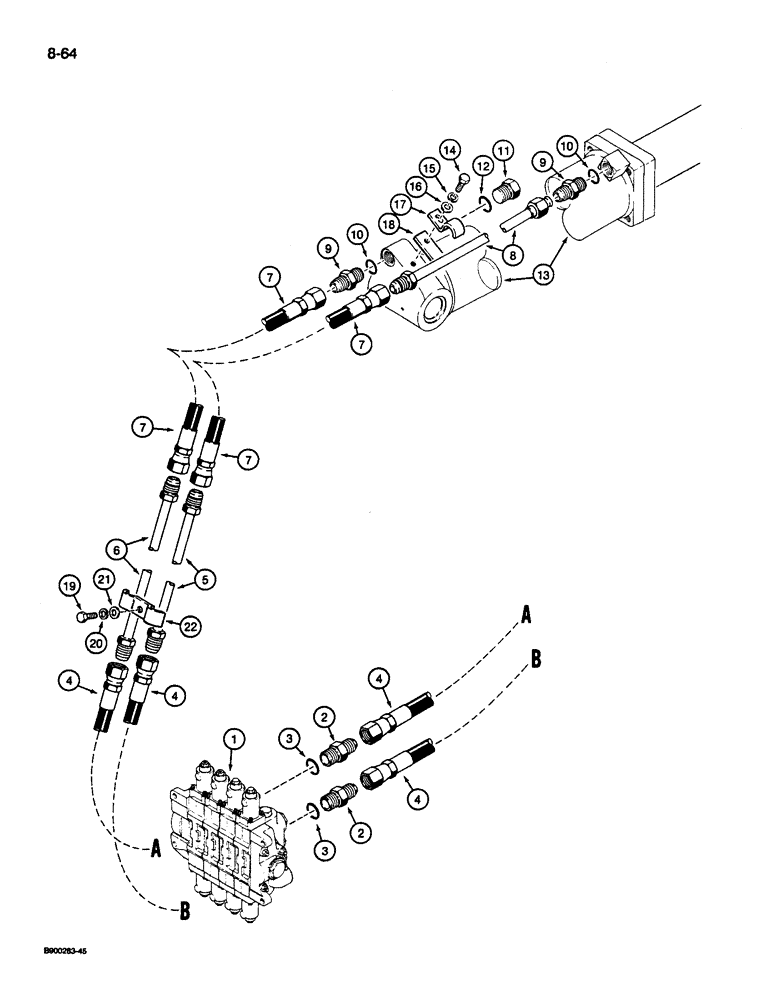

Запчасти Case 1085C (8-064) - ARM CYLINDER HYDRAULIC CIRCUIT, MODELS WITH EXCAVATING BOOM (08) - HYDRAULICS

1

1978152C1

DISTRIBUTOR

VALVE ASSEMBLY - control, arm and swing, parts list Figure: 8-016

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

4

S243683

HOSE

- 980 mm long, at control valve

2шт.

5

S224607

TUBE ASSY.,41" L

TUBE - intermediate, to rod end of arm cylinder

1шт.

6

S243517

TUBE ASSY.

TUBE - intermediate, to closed end of arm cylinder

1шт.

7

S8626

HOSE ASSY.

HOSE - 60 inch long, intermediate

2шт.

8

S243248

TUBE ASSY.

TUBE - at rod end of arm cylinder

1шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 10

2шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

11

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 12 Hex Hd, 1 5/16"-12 ORB

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

13

S957012

CYLINDER

ASSEMBLY - arm, parts list Figure: 8-084

1шт.

14

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

16

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

17

S120173

CLAMP

- tube, at arm cylinder

1шт.

18

S120957

BLOCK

- clamp mounting

1шт.

19

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

22

S79656

CLAMP

- tubes and, Serial Range: hoses-boom

2шт.
