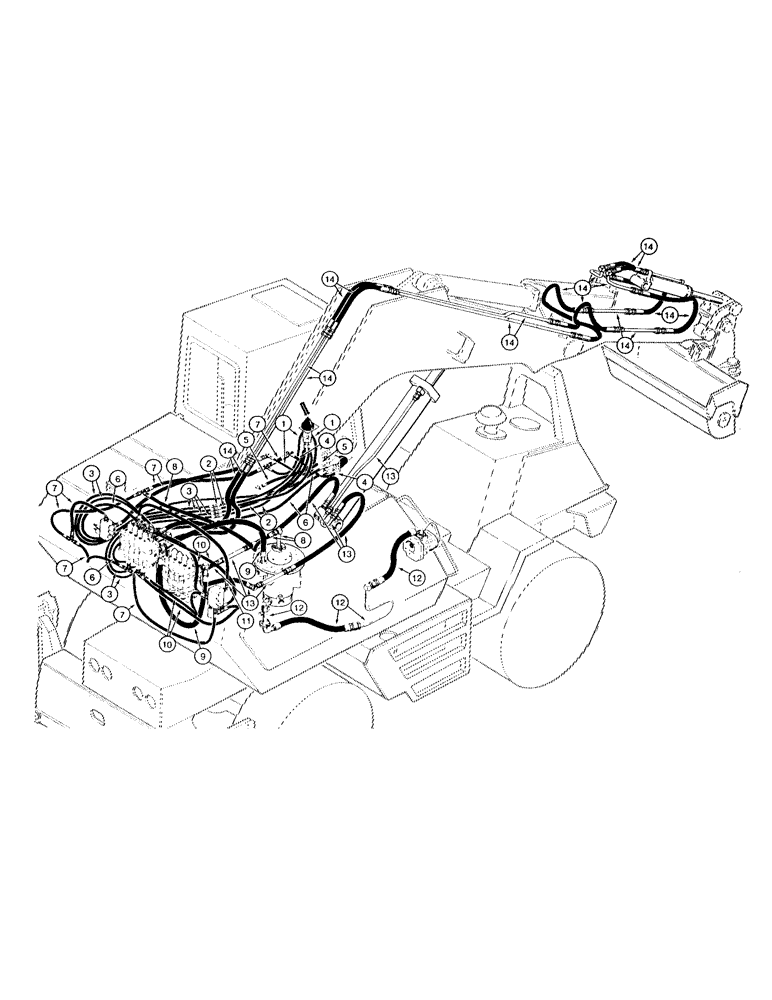

Запчасти Case 1085C (1-18) - PICTORIAL INDEX, BOOM AND TOOL HYDRAULIC CIRCUIT, RIGHT-HAND HAND AND FOOT CONTROLS (00) - PICTORIAL INDEX

1

Hoses from Right-Hand Hand Control Valve to Crosses under the Cab Floor Plate, Page 8-103

1шт.

2

Hoses from Right-Hand Hand Control Valve to Hoses under the Cab Floor Plate, Page 8-103

1шт.

3

Hoses under the Cab Floorplate to Boom and Tool Sections of the Control Valve, Page 8-103

1шт.

4

Hoses from Auxlilary Foot Control Valve, if used, to Cross under Cab Floor Plate, Page 8-107

1шт.

5

Hoses from Auxiliary Foot Control Valve, if used, to Tee at Left- Hand Foot Control Valve, Page 8-107

1шт.

6

Hoses from Foot Control Valve to Auxiliary Cylinder Section of the Control Valve, Page 8-107

1шт.

7

Hoses from Cross under Cab Floorplate to High Speed Valve, Pilot Manifold Valve, and High Speed Auxiliary Section, Page 8-109

1шт.

8

Return Hose to Lower Hydraulic Swivel, Port No. 4, Page 8-109

1шт.

9

Hoses from High Speed Auxiliary Section of Swing and Arm Control Valve and Inlet Section of Boom and Tool Control Valve to Lower Hydraulic Swivel, Port No. 2, Page 8-11

1шт.

10

Hoses from Boom and Tool Sections to High Speed Valve, Page 8-111

1шт.

11

Hose from High Speed Auxiliary Section to High Speed Valve, Page 8-111

1шт.

12

Hoses and Tubes from Boom and Tool Pump to Lower Hydraulic Swivel Port No. 2, Page 8-9

1шт.

13

Hoses and Tubes from Boom Section to Boom Cylinder, Page 8-67

1шт.

14

Hoses and Tubes from Tool Section to Tool Cylinder, Page 8-69

1шт.
