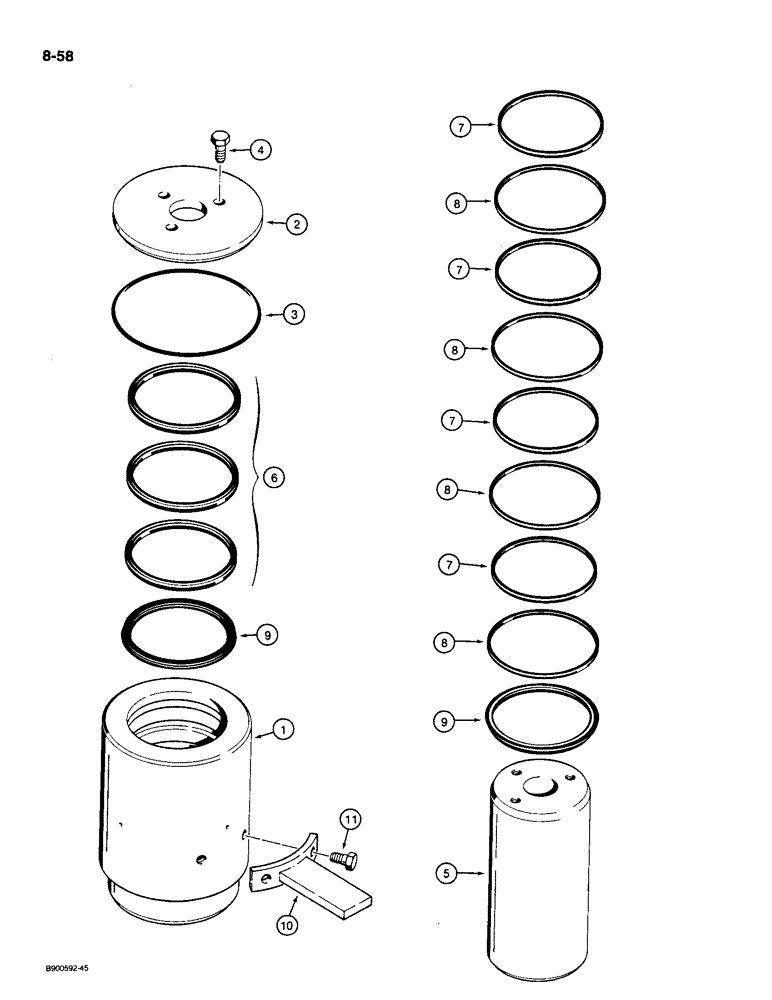

Запчасти Case 1085C (8-058) - UPPER HYDRAULIC SWIVEL (08) - HYDRAULICS

S517241

PIVOT

SWIVEL ASSEMBLY - hydraulic, upper, Includes: Ref. 1 - 11

1шт.

1

S619174

HOUSING

- swivel

1шт.

2

S517242

COVER

- swivel

1шт.

3

238-5255

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Replace with items 2 and 3 on Figure 8-062 during installation

3шт.

5

S619176

STEM

SHAFT - swivel

1шт.

6

S243707

SEAL

- upper

3шт.

7

S120690

SEAL

- inner

4шт.

8

S120691

SEAL

RING - load, inner seal

4шт.

9

S120692

SEAL

- lip

2шт.

10

S242983

STOP

- swivel

1шт.

11

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.
