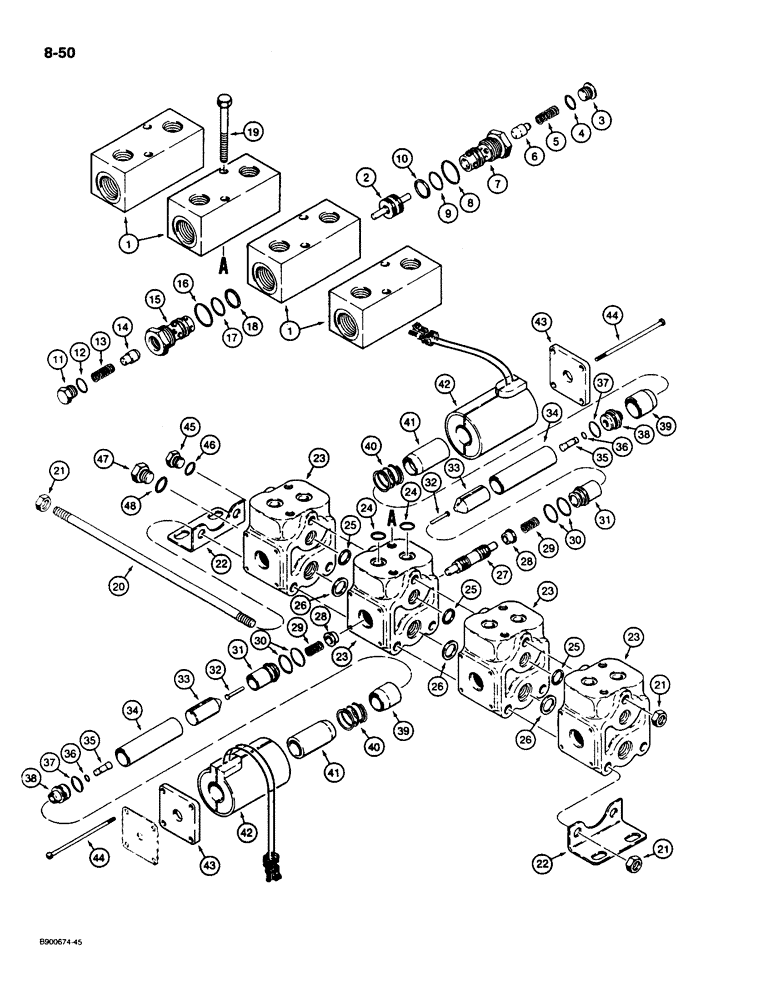

Запчасти Case 1085C (8-050) - FOUR SPOOL OUTRIGGER CONTROL VALVE (08) - HYDRAULICS

1978104C1

VALVE

ASSEMBLY - control, four spool, outrigger, Includes: Ref. 1 - 48

1шт.

1986607C1

VALVE

ASSEMBLY - check, Includes: Ref. 1 - 18

4шт.

1

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

2

NSS

NOT SOLD SEPARAT

SHUTTLE - check valve

1шт.

1986613C1

VALVE

CARTRIDGE ASSEMBLY - check valve, Includes: Ref. 3 - 10

4шт.

3

NSS

NOT SOLD SEPARAT

PLUG - Allen head

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - cartridge

1шт.

6

NSS

NOT SOLD SEPARAT

POPPET - cartridge, without orifice

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 1986608C1

1шт.

9

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 1986608C1

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of seal kit P/N 1986608C1

1шт.

1986614C1

VALVE

CARTRIDGE ASSEMBLY - check valve, Includes: Ref. 11 - 18

4шт.

11

NSS

NOT SOLD SEPARAT

PLUG - hex head

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - cartridge

1шт.

14

NSS

NOT SOLD SEPARAT

POPPET - cartridge, with orifice

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

16

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 1986608C1

1шт.

17

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 1986608C1

1шт.

18

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of seal kit P/N 1986608C1

1шт.

19

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

8шт.

20

1986700C1

STUD

ROD - tie

3шт.

21

425-106

NUT,3/8"-16, Cl 5

6шт.

22

NSS

NOT SOLD SEPARAT

BRACKET - mounting

2шт.

1986610C1

VALVE

ASSEMBLY - solenoid, Includes: Ref. 23 - 44

4шт.

23

NSS

NOT SOLD SEPARAT

BODY - solenoid valve

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - body

2шт.

Part of seal kit P/N 1986608C1

1шт.

25

NSS

NOT SOLD SEPARAT

RING - quad, small, upper

2шт.

Part of seal kit P/N 1986608C1

1шт.

26

NSS

NOT SOLD SEPARAT

RING - quad, large, lower

2шт.

Part of seal kit P/N 1986608C1

1шт.

27

NSS

NOT SOLD SEPARAT

SPOOL - solenoid valve

1шт.

28

NSS

NOT SOLD SEPARAT

SEAT - spring

2шт.

29

NSS

NOT SOLD SEPARAT

SPRING - spool

2шт.

30

NSS

NOT SOLD SEPARAT

O-RING - retainer

4шт.

Part of seal kit P/N 1986608C1

1шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - shuttle

2шт.

32

NSS

NOT SOLD SEPARAT

PLUNGER - shuttle

2шт.

33

NSS

NOT SOLD SEPARAT

SHUTTLE - solenoid

2шт.

34

NSS

NOT SOLD SEPARAT

TUBE - armature

2шт.

35

NSS

NOT SOLD SEPARAT

PIN - armature

2шт.

36

NSS

NOT SOLD SEPARAT

O-RING - pin

2шт.

Part of seal kit P/N 1986608C1

1шт.

37

NSS

NOT SOLD SEPARAT

O-RING - plug

2шт.

Part of seal kit P/N 1986608C1

1шт.

38

NSS

NOT SOLD SEPARAT

PLUG - armature

2шт.

39

NSS

NOT SOLD SEPARAT

RETAINER - spring, inner

2шт.

40

NSS

NOT SOLD SEPARAT

SPRING - armature

2шт.

41

NSS

NOT SOLD SEPARAT

RETAINER - spring, outer

2шт.

42

NSS

NOT SOLD SEPARAT

COIL - electric

2шт.

43

NSS

NOT SOLD SEPARAT

COVER - solenoid

2шт.

44

1986698C1

SCREW

- cover

8шт.

45

76349

PLUG,9/16" - 18 ORB

Upper, Incl. Ref. 45 Hex Hd, 9/16"-18 ORB

1шт.

47

214389

PLUG,3/4" - 16 ORB

Lower, Includes Ref. 48 Hex Hd, 3/4"-16 ORB

1шт.

48

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

1986608C1

SEAL KIT

- seal, Includes Refs. 4, 8, 9, 10, 12, 16, 17, 18, 24, 25, 26, 30, 36, 37

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Part of seal kit P/N 1986608C1

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Part of seal kit P/N 1986608C1

1шт.

46

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
